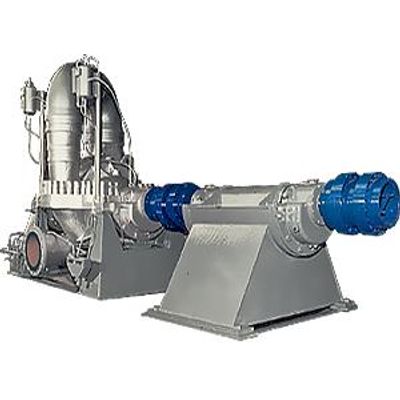

Ganz - Model BF -Horizontal Shaft Hot Water Pump
Horizontal-shaft, single-entry, single stage pump with volute casing and overhanging bearing support to be built into a pressurized system for hot water circulation. The max. pressure at the suction side is 25 bars.
The pump consists of two parts, namely the scroll casing cast integral with the suction branches and provided with feet, and the rotor carried in ball bearings in the bearing bracket.
Clean hot water at a temperature of max. 200 °C and industrial water. Max. silt content: 5 g/dm3. Particle size: max. 0.1 mm.
Primarily in the systems of heating centres as circulating pumps.
Teflon-cord-packed or mechanical stuffing box which can be cooled.
Deep-groove ball bearing at the pump side and two angular-contact bearings placed opposite to each other on the shaft coupling side. The oil, if necessary, can be cooled with a cooling coil to be installed in the oil space.
- Impeller, wear ring, base bushing, water seal ring: nonferrous metal.
- Pump casing, stuffing-box cover: steel casting.
- Shaft: carbon steel.
- Shaft sleeve: corrosion-resistant steel.
