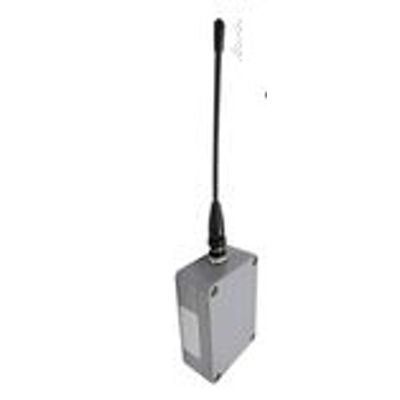

GAO-RFID - Model 214054 -433 MHz Active RFID Reader Access Control Autonomous or Centralized Sensor
FromGAO RFID Inc
The 433 MHz active RFID reader guarantees the access control by operating at 433 MHz or 868 MHz frequency and featuring an integrated relay for controlling the accessories directly. The receiver is compatible with RS-485 and RS-422 connection and has an extended range of up to 328.083 ft. (100m) radius. The universal Wiegland output enables connection to nearly all available types of access controllers to facilitate a hands-free access control and tracking. The 433 MHz active RFID reader can be used to monitor the humidity and temperature in the buildings in industries such as manufacturing above others.
Most popular related searches
monitor humidity
continuous noise monitoring
waterproofing
temperature monitoring
humidity monitoring
noise monitoring

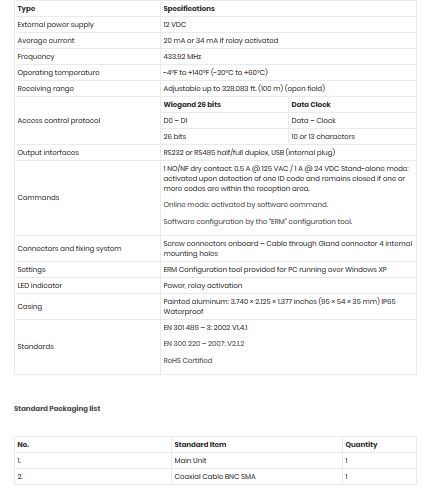

- 433 MHz Active RFID reader.
- Rs232 / Rs485 / USB interface.
- Access Control protocols: Wiegand 26bits, Data, and Clock.
- Stand-alone mode with 1 internal relay by dry contact.
- Long-range: up to 328.083 ft. (100 m) (open field), adjustable by software.
- IP65 waterproof 3.740 × 2.125 × 1.377 inches (95 × 54 × 35 mm).
- Antenna BNC connector / Gland connector.
- ERW configuration software.
- ERW adjusts the badge detection range.
- ERW displays received data frames continuously.
- ERW measures RF noise levels in real-time.
- 433 MHz Active RFID Reader Access Control Autonomous or Centralized Sensor enables an active RFID receiver operating at 433 MHz or 868 MHz, with an integrated relay for controlling accessories directly. This receiver features RS-485 and RS-422 connections for using several readers in bus mode.
- Its Wiegand output enables you to connect the device to nearly all types of access controllers on the market to implement a hands-free access control solution.
- It is used to monitor temperature and humidity levels in buildings.
