GAO RFID Inc

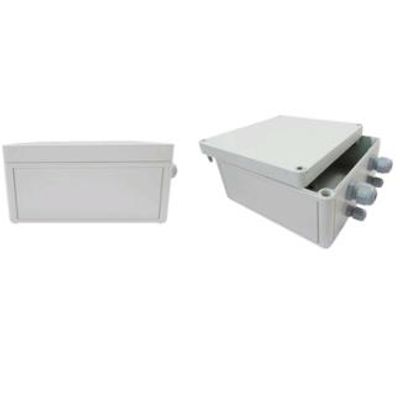

GAO-RFID - Model 214055 -433 MHz Active Counting Entries & Exits RFID Badge Reader
FromGAO RFID Inc
The 433 MHz active RFID badge reader with two external antennas enables automated tracking of RFID badges. The directional antennas featured in this device detects the direction of the passage of the RFID badge and provides localization between two contiguous identification zones. It is widely used as a hands-free access control solution to automatically track the movement of the personnel in various industries, such as construction and manufacturing.
Most popular related searches

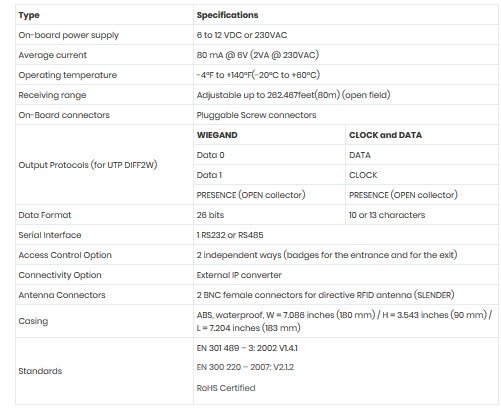

- Active RFID double readers.
- RS232 / RS485 / RS422 interfaces (IP option available).
- Bidirectional traffic detection, Entrances/Exits management.
- External Power Supply: 12VDC or 230VAC.
- 2 antenna sockets A and B.
- Long-range: up to 328.083 ft. (100 m), adjustable 433 or 868 MHz.
- Access Control Protocols – WIEGAND and DATA and CLOCK (2 independent ways).
- Configuration by RS232 or internal LCD panel (2*16).
- ABS White Housing 7.086 × 3.543 × 7.165 inches (180 × 90 × 182 mm).
- Software for configuring, viewing, and recording RFID data frames.
- RFID readers with RS-232, RS-485, Ethernet, Wi-Fi, or USB interfaces.
- Uses MCHD command codes.
- Supports Windows XP and higher.
- 433 MHz Active RFID Badge Reader Counts Entries Exits enables an active RFID reader featuring connections for two external antennas. When used with directional antennas, this automation tool detects the direction of passage for active RFID badges.
- Localization of RFID badges between two contiguous identification zones.
- Automated inventory of objects marked with RFID over a very large reading zone.
- It’s used to automatically count people on construction sites, and as a hands-free access control solution.
