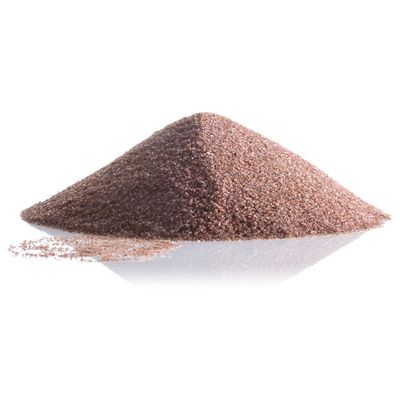

EVERZIT - Model GS -Garnet Sand (Almandine) for Finest Filtration
Garnet sand in accordance with EN 12910. EVERZIT® GS is a naturally occurring garnet sand (Almandine). Its high density makes it particularly well suited for use in very fine grain sizes for ultra-fine particulate filtration.
EVERZIT® GS is used as the bottom filtration layer in dual media filters. Very high in density, it can be used in very fine grain sizes – i.e. down to 0.2 mm – in wide-ranging applications including:
- Ultra-fine particulate filtration
- Pre-filtration before activated carbon filters, ion exchangers or reverse osmosis units
- Shallow media layers, i.e. layers 200 - 400 mm in height
- Dual media filters, used in combination with EVERZIT® N
- Multi-media filters, used in combination with EVERZIT® N and quartz sand.
For optimum operation, we recommend use of a support layer of EVERZIT GS® in the grain size range 1.4 – 2.5 mm.
- Almandine: 97 - 98 %
- SiO2: 36 %
- Al2O3: 20 %
- FeO: 30 %
- Fe2O3: 2 %
- Specific density: approx. 4.1 g/cm³
- Bulk density: approx. 2100 - 2300 kg/m³
- Hardness: approx. 7 - 8 Mohs
I) 0.2 - 0.6 mm
II) 0.6 - 1.4 mm
III) 1.4 - 2.5 mm
Other grain-size ranges can be supplied in accordance with your specific requiremants.
EVERZIT® GS complies fully with the following standards and regulations:
- EN 12910
- German Drinking Water Ordinance 2001
- DVGW work sheet W 213
- Drinking water treatment
- Sea water desalination
- Process water treatment
- 25 kg PE bags on Euro or one-way pallets
- 1250 kg big bags
- Bulk transport in silo trucks
