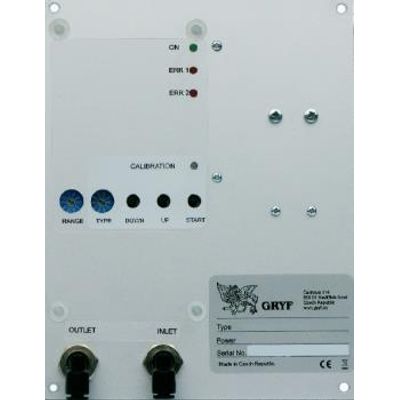

GRYF - Model OXY F 0001/5/2 -Gas Analyzer
OEM module for measuring oxygen concentration using a fuel cell sensor.
Most popular related searches
gas flow monitoring
oxygen concentrator
gas analyzer
oxygen monitoring
sensor data
gas monitoring
flow monitoring
Attributes: Data
- Supply voltage: 24 V/dc ± 10%
- Supply current: 60 mA
- Output signal: 4 – 20 mA
- Oxygen concentration range: 0,005 – 25%
- Sensitivity (resolution): 0,005%
- Measuring accuracy: ± 1 % from value, ± 0,02%
- Signal stabilization : 30 s (READY signal)
- Signal READY: 24V, max. 100mA
- Measured gas flow: 0.2 – 0.3 l / min
- Inlet pressure: 1 bar ± 0.1bar
- Operating temperature: 0 °C ÷ 50 °C [32 °F ÷ 122 °F]
- Dimensions: 167 x 130 x 65 mm
