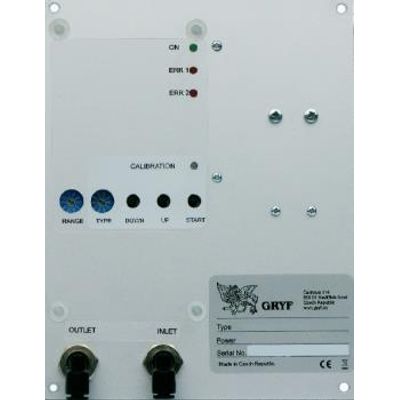

GRYF - Model OXY P 0/100/2 PM aj -Gas Analyzer

Attributes: Data

• Supply voltage: 24 V/dc ± 10%
• Supply current: max. 100 mA
• Output signal: 4 – 20 mA
• Oxygen concentration range: 0% – 100%
• Sensitivity (resolution): 0,01% (0 - 10%)
• Measuring accuracy: ± 0,2 %
• Zero Stability: ± 0.2% per month
• Warm-up time: 20 sec (signal READY switch on 5min after)
• Measured gas flow: 0.1 – 0.3 l / min
• Error caused by flow change: max. 0.05% per 0.01 l/min
• Inlet pressure: 1 bar  ± 0.1bar
• Operating temperature: 5 °C ÷ 50 °C [14 °F ÷ 122 °F]
• Dimensions: 167 x 130 x 65 mm
• Weight: 450g
