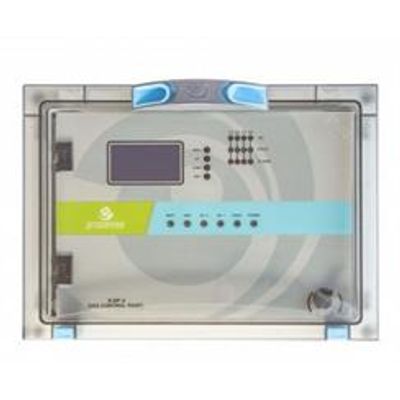

Prosense - Model DP-4 -Gas Control Panel
Prosense DP4 is an innovative gas control panel to meet with tough industrial requirements and allow monitoring explosive (%LEL)and toxic(PPM) gases contents in environments and classified areas. DP4 panel can connect to 4 Analog 4-20 mA signal gas detectors. DP4 panel comes with ABS cabinet and rated IP66. With backlit display on the front of the panel notifies LEDs indicators provide you programming Alarm1,Alarm2,Alarm3 in real time. Fault LED notifies you for defective detector, faulty cable connection, cable damage or short circuit between detectors and DP4 panel.
DP-4 has lots of futures for small plants in case of more relay requirement S-4R optional relay module can be easily plugged to DP-4 to have up to 12 relay output.
By this way induvidually each detector could have relay output for Alarm 1, Alarm 2 and Fault
- S-4R
- Industrial plants
- Automation systems
- Laboratories
- LPG/LNG storage areas
- Autogas
- Communication 4-20mA, Optional Modbus
- Display 128x64 LCD
- Input 12V Digital
- IP Rating IP 66
- Others Easy and simple programming, alarm logs, change name of each detector
- Relay Output 4 Selectable Alarm Relay (2 Alarm, 1 Fault, 1 Aux). Optional relay outputs with S-4R (up to 12)
- Connection 4-20 mA, up to 4 pcs 4-20mA detectors
