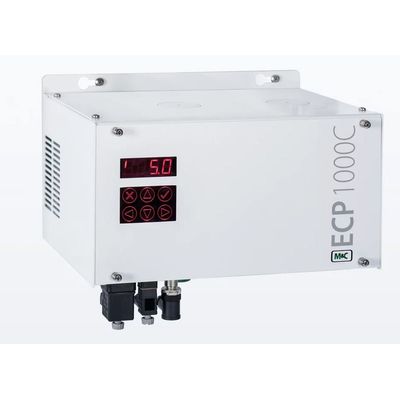

Peltier - Model ECP1000C -Gas Cooler

FromM&C TechGroup

SHARE

Electric gas cooler type ECP1000C with display and capacitive control panel, for ambient temperatures up to +50 °C, with Peltier element, electronically regulated between +2 and +15 °C (pre-set to +5 °C), adjustable high/low-temperature alarm with 1 potential-free relay contact, integrated LA evaluation, without heat exchanger, power: 115 to 230 V AC/50 to 60 Hz pluggable. One stream, max. flow 150 Nl/hr, different materials of heat exchangers, power 115-230 V AC/50-60 Hz.

Most popular related searches

peltier gas cooler

integrity monitoring

gas conditioning

setpoint temperature controller

condensate analyzer

condensate analysis

Peltier gas cooler for 1 Jet-Stream heat exchanger with a gas flow rate of max. 150 Nl/h
Can be used up to an ambient temperaure of 50 °C [+122 °F] as standard
Adjustable gas outlet dew point with a stability of < ±0.1 °C [±0.18 °F] at constant conditions
Control setpoint selectable between absolute and differential temperature value mode
With a total cooling capacity of 110 kJ/h at +25 °C [+77 °F] ambient
Universally usable with broadband power supply
Configurable, potential-free alarm output
Integrated evaluation for liquid alarm sensors LA1 and LA1S
Optionally: 1 Jet-Stream heat exchanger, automatic or manual condensate removal, configurable mA output (no shielding necessary), measuring of the gas outlet temperature in the gas path
Explosion-proof: No
Cooling: Peltier
Temperature: > 2 °C [> 28.4 °F]
Gas paths: 1
Flow rate/gas path: 150 Nl/h
Material: Selectable
Power supply: 110?120 V 220?240 V

The ECP 1000C gas cooler is used in gas analysis to lower the dew point of humid to avoid condensation in the analyser. An extremly stable gas dew point avoids water vapour crosssensitivity and volumetric errors.
