VET - Model JRF-H35-01TA -Gas Cylinder Pressure Relief Valve
Vet Energy is one of the famous China JRF-H35-01TA Gas Cylinder Pressure Relief Valve manufacturers and suppliers. Our factory specializes in manufacturing of JRF-H35-01TA Gas Cylinder Pressure Relief Valve. We stick to the principal of quality orientation and customer priority, we sincerely welcome your letters, calls and investigations for business cooperation.

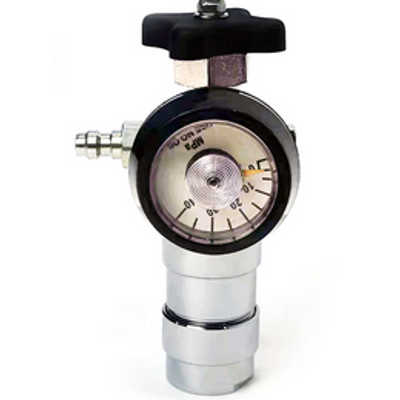

The JRF-H35-01TAgas cylinder pressure relief valve is a gas supply valve specially designed for small hydrogen supply systems such as 35MPa.See Fig. 1, Figure 2 for the device, schematic diagram and physical objects.
JRF-H35-01TAcylinder pressure relief valve adopts integrated design, including pressure gauge, safety valve, one-way filling valve, manual switch valve, filter, secondary pressure relief valve.
Cylinder pressure relief valve module
JRF-H35-01TAcylinder relief valve adopts secondary forward pressure regulation mode, with high outlet pressure accuracy, good stability and less vibration.
One-way filling valve
The JRF-H35-01TAcylinder pressure relief valve uses the original one-way filling valve, acting as a stop valve when the module is inflated. Keep the manual switch valve closed without switching the valve.
- Rated working pressure: 0~35MPa
- Bursting pressure of safety valve: 41.5~45MPa
- Outlet pressure: 0.05~0.065MPa
- Output flow: ≥80L/min
- Overall leakage rate: ±3%
- Housing material: HPb59-1
- Interface: Customized on demand
