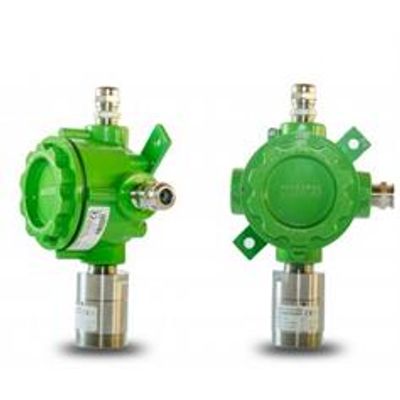

Prosense - Model P Series -Gas Detectors

Pellistor and Infrared sensors employed for the flammable Gas detection provides excellent output linearity 0- 100 % LEL.

• Prosense gas detector provides universal 4-20 mA signal to connect to Prosense Gas control panels or a suitable PLC.
• Optional P-3R relay card provides three-level selectable alarm relay outputs (Alarm1 and Alarm2), third one for FAULT level and can be set to predefined LEL levels to be linked to addressable or conventional fire
• control panels.
• Optional P-RS addressable card provides Modbus RTU output that can connect to the S-DP32 addressable Gas Control Panel.
• The Prosense "P" series detector is certified Ex II 2G Ex d IIC T6-Ex II 2G Ex mb IIC T6,IEP 12 ATEX 082 - IEP 12 ATEX 103- IEP 12 ATEX 118X and is suitable for use in Zone 1-2 hazardous areas with the additional aparatus IP-66 rated and can become more safe against water flashes.

P Series for Toxic Gases

PROSENSE "P" Series detector can reliably detect toxic compounds (ppm) for Oxygen, Chlorine, Carbon dioxide, Nitrogen dioxide, Nitric oxide, Sulfur dioxide, Hydrogen Sulfide, Ammonia, Carbon monoxide gas in industrial

environments and classified areas.

Electrochemical and Infrared sensors employed for the toxic Gas detection provides excellent outputs in ppm ranges and includes TLV-TWA values.

• Prosense gas detector provides universal 4-20 mA signal to connect to Prosense Gas control panels or a suitable PLC.
• Optional P-3R relay card provides three-level selectable alarm relay outputs (Alarm1 and Alarm2), third one for FAULT level and can be set to predefined LEL levels to be linked to addressable or conventional fire control panels.
• Optional RS addresable card provides Modbus RTU protocol outputs for data transfer to industry standard control sysyems and connect to DP32 Gas control panels.
• The Prosense "P" series detector is certified Ex II 2G Ex d IIC T6-Ex II 2G Ex mb IIC T6,IEP 12 ATEX 082 - IEP 12 ATEX 103- IEP 12 ATEX 118X and is suitable for use in Zone 1-2 hazardous areas with the additional aparatus IP-66 rated and can become more safe against water flashes.

• Process Industry
• Water Treament
• Chemical Industry
• Food Facilities
• Metal Industries
• Pharmaceutical Facilities
• Gas Distribution Stations
• Laboratories

• Sensing Technoligies Pellistor, Electrochemical, Infrared, Semi-Conductor
• Measurement Options LEL, ppm, Vol
• Output Signal 4 - 20mA, RS485 Modbus RTU
• Relay Contacts Alarm1, Alarm2, Fault
• Response Time(T90) Pellistor
• Sensor Warm-up Time 60sec
• Accuracy %±2
• Input Voltage Range 12 - 34 VDC
• Power Consumption Max. 4W
• Operating Temperature -40°C ~ +70°C
• Humidity 5 ~ 95 %RH
• Junction Box Die-Cast Aluminium
• Cable Entry Options 2 x 1/2`` NPT
• Sensor Head SS316L Stainless Steel
• IP Rating IP65/IP66

Certification

• Approvals ATEX/IECEx
• Atex Marking Ex II 2G Ex db IIC T6
• Zone 1 - 2
• Category 2
