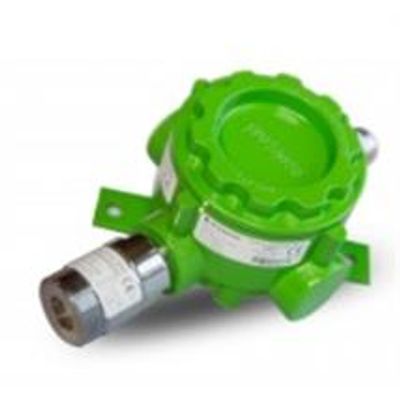

Prosense - Model PE Series -Gas Detectors

• Catalytic sensors employed for the flammable Gas detection provides excellent output linearity 0-100 % LEL.
• Prosense gas detector provides universal 4-20 mA signal to connecting to Prosense Gas Control Panels or a suitable PLC.
• Optional P-2R relay card provides two-level selectable alarm relay outputs (Alarm1 and Alarm2) can be set to predefined LEL levels to be linked to addressable or conventional fire control panels.
• The Prosense "PE" series detector is certified Ex II 2G Ex d IIC T6, and issuitable for use in Zone 1-2 hazardous areas with IP-65 Rated.

• LPG Stations
• Boiler Rooms
• Laboratories
• Light Industrial Applications

• Sensing Technoligies Catalytic
• Measurement Options 0-100%LEL
• Output Signal 4-20mA
• Relay Contacts Alarm1, Alarm2
• Sensor Warm-up Time 60sec
• Accuracy %±2
• Input Voltage Range 12 - 34 VDC
• Power Consumption Max. 4W
• Operating Temperature -40°C ~ +70°C
• Humidity 5 ~ 95 %RH
• Junction Box Die-Cast Aluminium
• Cable Entry Options 1/2`` NPT
• Sensor Head Die-Cast Aluminium
• IP Rating IP65

Certification

• Approvals ATEX/IECEx
• Atex Marking Ex II 2G Ex db IIC T6
• Zone 1-2
• Category 2
