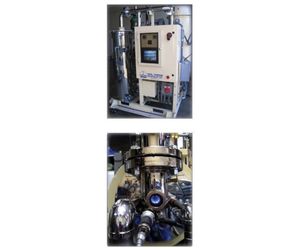

Soil-Therm - Model Micro-THERM -Gas-Fired Thermal Oxidizer Systems
The Micro-THERM is the smallest, most powerful remediation oxidizer system on the market. The footprint is a mere 4 ft by 3.5 ft, which includes everything from the water knockout, knockout pump, control panel, SVE blower, and our patented Jet-THERM ultra low NOx burner. The Micro-THERM is quiet, energy efficient, and has a flow range of 50 - 300 scfm at vacuums to 14` Hg. Add catalyst and a heat exchanger and the Micro-THERM can operate using less supplemental fuel than the gas grill in your back yard!
Our Micro-THERM systems provide you with the most advanced and highest quality systems money can buy. Outstanding design means more run time, fewer site visits, and a huge reduction in operating costs. Our touchscreen operator panel contains all the information you need to perform any task, such as complete diagnostics and status, troubleshooting, electrical and PID displays, and system operational data.
- Flow Range: 50 to 300 cfm, vacuums to 14” Hg
- Small Footprint: Only 4-ft x 4ft, 1,400 lbs.
- SVE Blower: The standard SVE Blower is rated for 220 cfm and vacuums to 14” Hg. Other blowers are also available, including 150 cfm dual phase water sealed pump to 28” Hg.
- Burner System: Stainless steel Jet-THERM burner, max 380,000 btuh, 100:1 turndown ratio. 3-year warranty.
- Dilution Air Blower: Enables dilution of extracted VOC’s on the pressure side of the SVE blower. Optimize performance without losing well vacuum.
- Stainless Water KO: 25-gallon water capacity with high level switch alarm shutoff.
Options
- Catalyst Module
- Water KO Auto-Pump
- 60% Heat Exchanger
- Hi-Flow SVE Blower
- 370 cfm, to 15” Hg
- Hi-Vac SVE Blower
- 120 cfm, to 20” Hg
- Internet Access Telemetry .
- Locking Enclosure
- LEL & Oxygen Sensor
- Open Trailer (5’x8’ s-axle)
- Skid Size: 4ft by 3.5ft Steel Skid with fork slots
- Blower (Choice 1): Siemens 1610 Blower: 220 cfm to 14" Hg, 8.5 hp
- Blower (Choice 2): Siemens 1800 Blower: 370 cfm, to 10" Hg, 11.5 hp
- Burner: Jet-THERMTM
- Piping: 3`" Stainless steel
- Water Knockout: 25 gallon, stainless steel, dual level removable level switch
- Knockout pump: Goulds NPE Stainless steel with ½ hp motor
- Well Vapor Valve: 3" Brass Gate Valve
- Dilution Air Valve: 3" Brass Gate Valve
- Main Control Panel: 30"x 24"x 12", UL Listed, Nema4
- Operator Interface: 8" Color Touchscreen with 4GB data card
- Variable Freq. Drive, Main Blower
- Main Blower Upgrades
- 1810 SVE Blower
- 7630 SVE/DPE Blower
- Roots 56 PD Blower
- Dilution Air Blower, 150 cfm, 2 hp
- Catalyst Module
- Heat Exchanger, stainless steel 55-60% efficiency
- ReMAC - Remote Monitoring and Control
- Cellular Modem Unit with Antenna
- Cellular Service (monthly fee)
- Monitoring Instrumentation Upgrades:
- LEL (pre-burner or exhaust stack)
- Oxygen (%)
- Amperage (A)
- Discharge Temperatures ( F)
- Stack Emissions Monitor (O2, VOC, CO2, etc )
- Many others...
- Trailer, dual axle, 7000 lb gvwr, 6`x12` deck
- Trailer, enclosed, 7000 lb gvwr, 8`x14` enclosed deck
- Enclosure, Cargo Container style
- Enclosure, Cargo Container with Noise Attenuation
