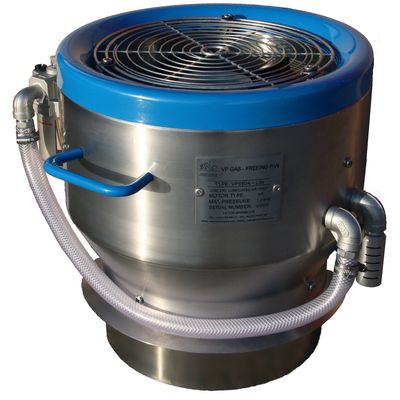

Victor - Model VP650A -Gas Freeing Fan
The VP650 is a high performance, deep penetration, air driven fan, constructed using high grade 316 stainless steel. This non-sparking fan is designed to be lightweight and therefore extremely portable. The VP650 is suitable for use on all types of vessels.
Most popular related searches
gas freeing fan
industrial ventilation fan
hazardous area
air filtration
clean air
air cleaning
media filtration
- Designed and Class-Approved for use in hazardous areas;
- Supply or Extract mode by simple reversal of supply;
- Can be supplied with horizontal mounting;
- Integral ‘Direct In-Line’ drive; no gearbox to maintain or fail;
- Non-sparking (ATEX approved);
- Can operate at low pressures;
- Lightweight and compact for portability;
- Can be supplied for horizontal mounting;
- High air-flow throughput;
- High static pressure;
- Efficient motors;
- Constructed using marine grade materials;
- Fail-safe bleed tube to indicate seal failure
- Operation: Supply or exhaust mode (exhaust mode variation upon request)
- Drive Media: Clean Lubricated Air
- Filtration/Lubrication: 64 micron filtration or better. 4-5 drops per/min for continuous operation
- Safety Features: Non-sparking, Impeller guard
- Deck Opening: To suit standard Ø318mm deck opening, on a 389 PCD. Alternative deck flanges available on request
- Material: 316 Stainless Steel Construction
- Weight: 17 kg (includes filter and lubricator)
- Connections: Quick Acting Claw Coupling
- Max Air Flow: 6750 m³/hr (113 m³/min)
- Max Static Pressure: 1015 Pa
- Max Flow Requirement: 178 m³/hr
- Operating Pressures: 2.0 - 7.0 kg/cm²
