Victor - Model VP950A -Gas Freeing Fan

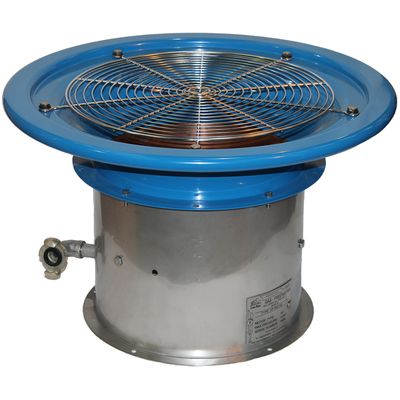

The VP950 is a high performance, deep penetration, air driven fan, constructed using high grade 316 stainless steel. This non-sparking fan is suitable for use on all types of vessels.
Most popular related searches
- Designed and Class-Approved for use in hazardous areas;
- Supply or Extract mode by simple reversal of supply;
- Can be supplied with horizontal mounting;
- Integral ‘Direct In-Line’ drive; no gearbox to maintain or fail;
- Non-sparking (ATEX approved);
- Can operate at low pressures;
- Lightweight and compact for portability;
- Can be supplied for horizontal mounting;
- High air-flow throughput;
- High static pressure;
- Efficient motors;
- Constructed using marine grade materials;
- Fail-safe bleed tube to indicate seal failure
- Operation: Supply or exhaust mode
- Drive Media: Clean Lubricated Air
- Safety Features: Non-sparking, Impeller guard
- Deck Opening: To suit standard Ø318mm deck opening on a 389 PCD. Alternative deck flanges available on request
- Material: 316 Stainless Steel Construction
- Weight: 24kg
- Connections: Quick Acting Claw Coupling
- Max Air Flow: 9000 m³/hr (150 m³/min)
- Max Static Pressure: 700 Pa
- Max Flow Requirement: 220 m³/hr
- Operating Pressures: Optimum, 2.0 – 7.0 kg/cm²
