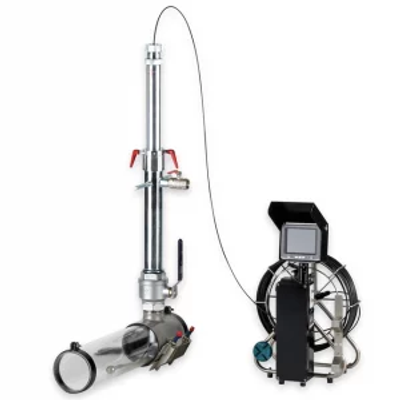

Staedtler - Model 8000 -Gas Lock for TV Sliding Cameras

Our gas lock for TV push-in cameras enables safe TV inspection of gas lines – completely without gas leakage. This allows, for example, the condition of a gas line to be checked if gas bubbles "burst" or are destroyed in the pipe during a shut-off measure. The lock allows for leak-free insertion of push-in cameras into gas lines at a pressure range of 0 to 6 bar.

Whether for maintenance, repairs, or regular inspections, our gas lock ensures that your TV inspection equipment can safely access the pipeline system. This allows you to always keep an eye on the condition of your gas lines without having to interrupt operations.

Innovative TV lock technology for secure line access

The gas lock for TV push-in cameras is an indispensable tool in pipeline inspection. It allows the insertion and retrieval of inspection cameras in live gas networks without gas leakage.

Thanks to sophisticated technology, the camera is inserted safely and in a controlled manner into the pipe and removed after inspection. This method reduces risks and ensures maximum safety when working on gas pipelines.

Pipe connections can be inspected, especially when changing pipe materials. The camera lock system can also be used to capture catchment devices, gate valves, and other fixtures. Even in water (pressure pipe) lines, a camera can be used much more cost-effectively to determine whether, for example, a gate valve is still closing properly.

Your advantages with the gas lock for TV sliding cameras

• Gas-free insertion of push-pull cameras for inspection purposes
• Pressure ranges from 0 to 6 bar can be easily covered
• Safe access to running gas lines without interruption of operations
• Flexible and easy handling for precise inspections

With our TV inspection system, you can conduct inspections efficiently and safely – whether for scheduled maintenance or in emergencies. Rely on innovative technology for maximum safety and efficiency in gas pipeline inspections.

TV gas lock system for various camera heads

The TV gas lock system is available for various camera heads, and appropriate adapters make the system compatible with most camera manufacturers. The standard version of the TV gas lock system is designed for use with operating pressures up to 1 bar, and its limits are generally determined by the pressure load capacity of the camera head used.

Variants

• 80000001 HA gas/water lock for closed pipes, up to 1 bar
• 80000002 HA gas/water lock for closed pipes, up to 6 bar
• 80000018 Transport case for gas and water lock
• 09990045 Aluminum transport case for camera reels up to 540 mm
• 80000099 Camera head protection guide for RI4035

Scope of delivery

• TV gas lock
• Setting tube
• Special clamp fitting
