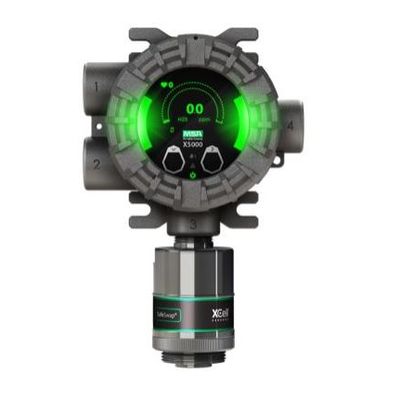

ULTIMA - Model X5000 -Gas Monitor System
The ULTIMA® X5000 Gas Monitor is the future of gas detection for oxygen, toxic and combustible gases. MSA XCell® gas sensors with TruCal® technology offer calibration cycles up to 24 months (local calibration respected). The gas transmitter's advanced, multi-lingual OLED display is easy to read and the unique touch-screen interface makes it simple to navigate.
Most popular related searches
gas monitoring
gas monitoring system
gas sensor
gas transmitter
gas detection
hydrogen cyanide
SO2
fixed gas
flame detection
ethylene oxide
- TruCal technology (available on H2S and CO sensors only) actively monitors the sensor integrity and compensates for environmental factors that cause regular electrochemical sensors to drift
- An industry first, Diffusion Supervision warns if sensor inlet becomes blocked and unable to detect gas
- Organic LED (OLED) display and bright status LED's for extreme visibility
- SafeSwap enables safe and quick replacement of gas sensors without turning off the instrument
- Dual sensor capability doubles the sensing power with half of the footprint of a single gas transmitter
- Bluetooth wireless technology allows mobile device to act as an HMI screen and controller
- The X/S Connect App is designed with high security standards and provides real-time information to your mobile device
- Unique touch-button interface for an intuitive user experience and tool-free operation
- Identical footprint and wiring as the ULTIMA X series makes retrofits simple using the existing conduit and wiring as well as an integral mounting bracket
- Cloud connectivity available with FieldServer ProtoAir FGFD Gateway
Gas Name
- Acetaldehyde
- Acetic Acid
- Acetone
- Acetronitrile
- Acetylene
- Acrylonitrile
- Amyl Acetate
- Amylamine
- Arsine
- Benzene
- Bromine
- Butadiene
- Butane
- Butene
- Butyl Acetate
- Butyl Alcohol
- Carbon Dioxide
- Carbon Monoxide
- Cyclohexane
- Decane
- Diborane
- Diethyl Ether
- Dimethylamine
- Dioxane
- Dodecane
- Ethane
- Ethanol
- Ethyl Alcohol
- Ethyl Ether
- Ethylamine
- Ethylbenzene
- Ethylene
- Ethylene Oxide
- Fluorine
- Gasoline
- Heptane
- Hexane
- Hydrogen
- Hydrogen Sulfide
- Isoprene
- Isopropyl Alcohol
- Isopropyl Ether
- Isopropylamine
- Jet Fuel
- Methane
- Methanol
- Methyl Alcohol
- Methyl Ethyl Ketone
- Methyl Methacrylate
- Naptha
- Octane
- Oxygen
- Pentane
- Phosphine
- Propane
- Propyl Acetate
- Propyl Alcohol
- Propylamine
- Propylbenzene
- Propylene
- Propylene Oxide
- Silane
- Styrene
- Tetrahydrofuran
- Tetrahydrofurfuryl Alcohol
- Triethylamine
- Trimethylamine
- Vinyl Acetate
- Vinyl Chloride
- Vinyl Ethyl Ether
- Xylene
- Sulfur Dioxide
- Chlorine
- Nitrogen Dioxide
- Ammonia
- Hydrogen Cyanide
- Hydrogen Chloride
- Nitric Oxide
- Hydrogen Fluoride
Markets
- General Industry
- Oil & Gas
- Utilities
Options
Ordering Options
- ATO Configurator
Accessories
- HART port
- Mounting bracket
- Duct mount kit
- Sun shield
- Remote junction box
- Housing entries M25 or ¾”NPT
