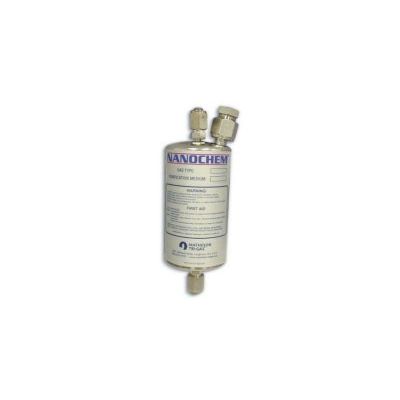

NANOCHEM - Model WK-Series (White Knight) -Gas Purifiers
NANOCHEM WK-Series (White Knight) purifiers offer the highest lifetimes and the best impurity removal efficiencies in a very economical design. The in-line design enables a very compact footprint and allows drop-in replacement of competing hardware designs. WK-Series are available in a number of sizes ranging from 55-ml for point-ofuse applications to 9-liters for bulk gas purification. Flow rates range from 3 slpm (0.2 NM3/hr) to 1000slpm (60 NM3/hr).
Most popular related searches
gas purification
gas purification system
corrosive gas
particle generator
poppet check valve
isolation valve
corrosive gas removal
contaminants removal
- For point-of-use to bulk flow specialty gas purification
- Highest Lifetimes
- Best Impurity Removal Efficiencies
- Removes critical contaminants to sub part-per-billion levels
- Patented built-in poppet valves at purifier inlet and outlet for purifiers filled with: OMA, OMS, OMX, OMX-Plus, and NHX-Plus
- Enhances manufacturing process economy and improves equipment performance
- Provides consistently high purity gas under fluctuating inlet impurity conditions
- Improves component lifetime and reduces particle generation by removing moisture from corrosive gases
- Compact Footprint; Inline design
- Easy to install & operate
- No heating or cooling required
- Quick start up
- All metal parts, Type 316L stainless steel, or Nickel 200
- Mounting bracket for WK-9000F
- Refills available for most gases (except or corrosive gases)
- Economical, Low Cost of Ownership
Specifications
- 0.003 pm filter with 99.9999999% retention (PTFEor316LSS)
- Internal surface finish < 15 pin Ra
- Maximum operating temperature is 70°C
Connections
- Male inlet and outlet connections, 1/4" VCR-compatible
Options
- Inlet and outlet isolation valves {standard for WK-9000F)
