- Constructed of Aluminum / 316 Stainless Steel
- Exterior Finish of White Epoxy/Polyester Coating
- Clear Polycarbonate Dome
- Aluminum Sample Inlet and 316L SS Sanitary Inlet Attachment
- 316 SS Sanitary Clamp, Seal, Sanitary Barb and Vacuum Tubing
- Dome Retention Assembly of Aluminum, 316 SS and Tubing
- Weight of 4 Pounds
- Dimensions of 7.5″ Height x 5″ Diameter
- Base is Chemically Sanitizable, Dome/Seal Autoclavable
- Turntable Motor is Synchronous (R2SC) or Stepper (V100)
- From 0-120 Minutes of Monitoring per Sample Cycle
- Operates at Sample Rate of 28.3 LPM (1 CFM) w/Standard Controller
- Operates at Sample Rate of 50 LPM w/V100 Controller
- Requires MICRO HPD Diffuser for Comp Air/Gas Monitoring
- Operates at Sample Rate of 28.3 LPM (1 CFM)
- Home
- Companies
- Applied Physics
- Products
- Applied Physics - Model RCG Comp - Gas ...

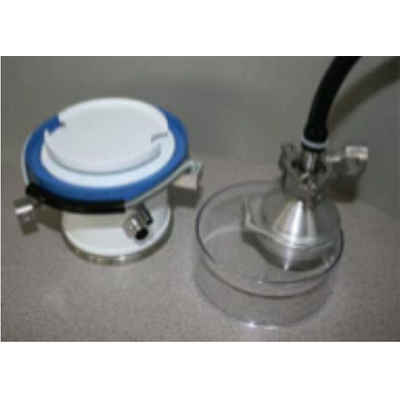

Applied Physics - Model RCG Comp -Gas Sampler
FromApplied Physics
The Remote Compressed Gas/ Confined Space Sampler(RCG) is a remote Slit-to-Agar Impaction sampling device which allows for sampling of compressed air and gas systems, and critical areas where a sampling device cannot be directly placed.
