Gas Transport Copvs

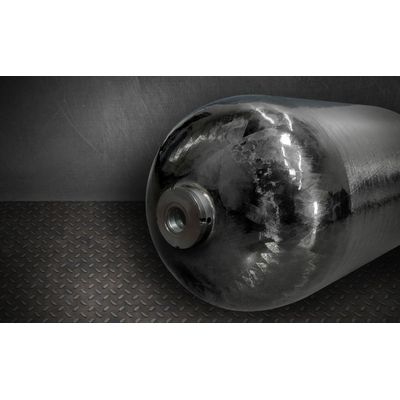

Steelhead Composites compressed gas cylinders offer a variety of gas storage options perfect for weight-sensitive and mobile applications. These cylinders weigh one-quarter of traditional steel counterparts and have a standard threaded steel 2.0 inch (51 mm) diameter port openings.
SUPERIOR STORAGE
Most complete fast-fill and negligible permeation
MAXIMIZE PROFITABILITY
Transport more compressed gas and minimize container weight
HIGH LIFE CYCLE
Fill and empty repeatedly with no concern of liner collapse
Steelhead Composites compressed gas cylinders offer a variety of gas storage options perfect for weight-sensitive and mobile applications. These cylinders weigh one-quarter of traditional steel counterparts and have a standard threaded steel 2.0 inch (51 mm) diameter port opening.
Gas Transportation
This innovative product can be a cost-effective and safe way to transport compressed gas. Multiple cylinders installed in a trailer or in a transportable container can serve as a mobile pipeline.
- Type 3 Pressure Vessel
- Maximum Operating Pressure: 5,000 psi (345 bar)
- Minimum Burst Pressure: 15,000 psi (1,034 bar)
- Port Opening: up to 2 inches (51 mm) in diameter
- Safety: Benign leak-before-burst avoids catastrophic failure
- Compliant with US/DOT and UN/ISO 11119-2 requirements
- Liner: Seamless, impermeable 6061-T6 Aluminum
- Structural Shell: Carbon fiber and epoxy composite
- Protective Barrier: Glass fiber and epoxy composite
- Neck or strap mounting available
- High thermal conductivity of Aluminum liner achieves a better fill capacity under fast-fill conditions
- Corrosion Resistant: Not prone to rusting like steel
