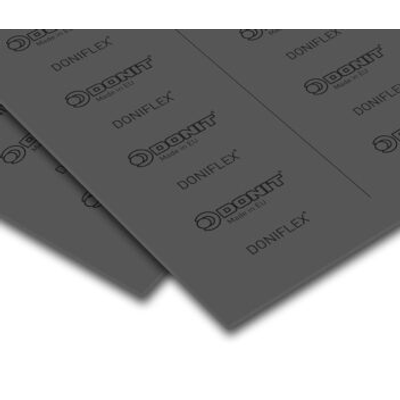

DonitModel Doniflex G-U -Gasket Sheet

SHARE

Devoid of any organic solvent, this graphite-based composite allaying aramid and special functional inorganics, is advanced heavy-duty material. It displays excellent physicochemical properties (thermal, chemical, stress resistance, etc.) with high compressibility and flexibility enabling it to conform to uneven surfaces. Steam supply, heating systems, and chemical industry are amongst its well-suited application. The version with a metal insert withstands higher pressures. Also, fitted with a highly performant anti-stick, gasket replacement is quite effortless following prolonged elevated temperature service.

Most popular related searches

Composition

Graphite, aramid fibers, functional inorganic fillers, NBR binder; optionally available with expanded metal reinforcement (AISI 316L, 0.15 mm)

APPROVALS AND COMPLIANCES

  • EC 1935/2004

Surface treatment

Standard: 4AS. Optional: IQ, graphite or PTFE

SHEET DIMENSIONS

  • Size (mm): 1500 x 1480 | 2000 x 1480
  • Thickness (mm): 0.8 | 1.0 | 1.5 | 2.0 | 3.0
  • Rolls: 1480 mm x L (m)
  • Thickness (mm): 0.8 | 1.0 | 1.5 | 2.0
  • Other sizes and thicknesses available on request
  • AUTOMOTIVE AND ENGINE BUILDING INDUSTRIES
  • CHEMICAL INDUSTRY
  • GENERAL PURPOSE
  • HEATING SYSTEMS
  • HIGH-TEMPERATURE APP.
  • PAPER & CELLULOSE INDUSTRIES
  • PETROCHEMICAL INDUSTRY
  • POTABLE WATER SUPPLY
  • POWER PLANT
  • STEAM SUPPLY
  • VALVES
  • WATER SUPPLY
