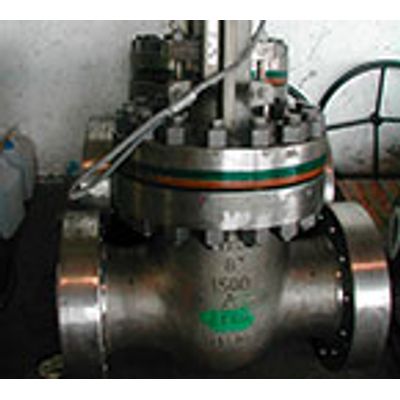

Firsa - Model 300LBS – FIG. 103 -Gate Valve

• Bolted bonnet, O.S.& Y.
• Solid or flexible wedge
• Full range of body and bonnet materials
• Renewable seats
• Rising stem – Non rising Handwheel
• Flanges according to ANSI B 16.5 from 2” to 24”
• Flanges according to ANSI B 16.47 from 26”
• Bw ends according to ANSI B 16.25
• Face to face according to ANSI B 16.10
• Testing according to
• API 598
• BS EN ISO 12266 Part 1

Special execution

9 See “ special features ” section

Material range

9 Valves are also available in Super Austenitic Duplex and Superduplex Steels , Nickel based Alloys , Titanium and Molibdenum 6
