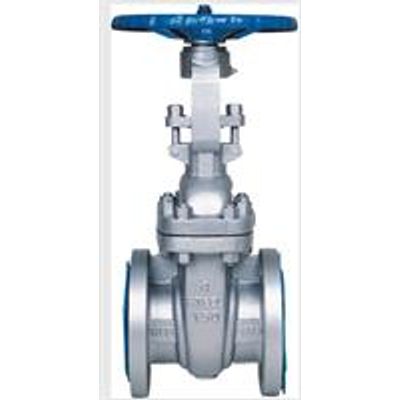

Tongda - Model ZJL -Gate Valve

Design & manufacture standard: API6D, API600, API603, ANSI/ASME B16.34, ISO10434. Face to face dimensions: ANSI/ASME B16.10.

Most popular related searches

Flange connection: ANSI/ASME B16.5 for NPS�Q24��, ASME B16.47A/MSS SP-44 for NPS>24��.
Butt-welding end dimensions: ANSI/ASME B16.25.
Inspection & test standard: API6D, API598.
Pressure: 150Lb, 300Lb, 600Lb, 900Lb, 1500Lb or PN10~PN160 or JIS 10K ~ JIS 40K.
Nominal diameters: 2��~ 48�� or DN50~DN1200.
Major materials: WCB, WC6, WC9, LCB, CF8(304), CF8M(316), CF3(304L), CF3M(316L), CF8C, etc.
Driving styles: manual/bevel gear/ electric/pneumatic/hydraulic, etc.
NACE MR 0175 on request. For 900Lb~1500Lb, pressure seal bonnet is available.

Product Details
