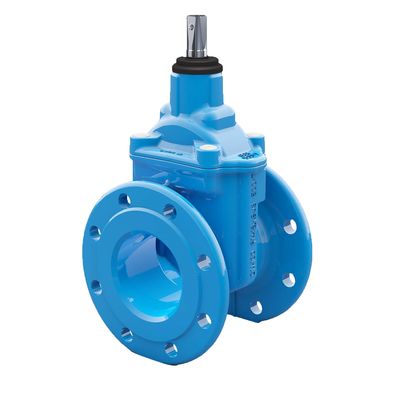

Infinity - Model F4-F5 DN40-700 PN10/16 -Gate Valve
INFINITY and its new wedge and stem technology ensures smooth functionality with outstanding low torque values.
Most popular related searches
- New guiding system for the wedge with male composite sliding skate in order to easily achieve the 2500 cycles enurance test required by European standards.
- Bayonet stuffing nut with three o-rings to guarantee the tightness throughout the stem.
- Patented three locking tab for bayonet system to avoid self dismantling, leakage and blow up risk.
- Body length: long pattern (serie S15) and short pattern (serie S14), according to EN 558.
- Nominal Pressure: PN16
- Flange drilling: PN10 or PN16 according to EN 1092-2
- Temperature:
- Epoxi coating: -10C a +50C
- Enamel coating: -10C a 70C
