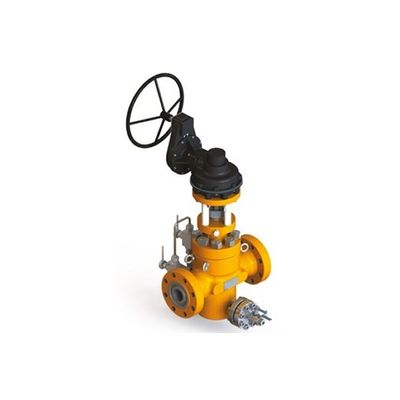

Maverick - Gate Valve
Size NPS 1/2″-36″ . Pressure Class 150-1500 . Material 1/2″-2″: A105, LF2, F11, F22, F5, F304, F316, F304L, F316L 2″-36″: WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M . Design & Manufacture Std. API 600,BS 1414,ASME B16.34 . Face to Face Std. API 6D,ASME B16.10,DIN 3202,BS2080 . End Connection Std. ASME B16.11,ASME B1.20.1,ASME B16.5, ASME B16.47,DIN2543-2551 . Test standard ISO5208,API 600,BS 6755 . Structure Type Rising Stem and Wedge Single Disc . Operated Way Handwheel, Bevel Gear, Pneumatic, Electric.
Most popular related searches
- Cast Steel Through conduit Gate Valves have been designed to meet the requirements of API 6A
- Face to Face and End to End dimensions conform to API 6A
- End flange dimensions conform to API 6A
- Butt weld end dimensions conform to API 6A
- Screwed end dimensions conform to API 6A
- Collapsing movement of split gate away from seat during opening eliminates erosion and abrasion of seats and gate
- Weather proof operating system
- Easy maintenance with valve in-line
- Through conduit piggable passage
- Anti-frictional Ball bearings
- Inside screw and yoke construction
- Bi-directional shut-off
- Sealant injector fittings
- Body ports are streamlined, permitting unobstructed flow, reduces turbulence, results in lower pressure drop and lower erosion
- Available in all popular bore sizes and PSL 1 through 4
