VAG Beta - Model HA - Gate Valve

VAG Beta - Model HA -Gate Valve

SHARE

Compact, resilient-seated gate valve with flange connection on both sides. Suitable for use as house connection valve in municipal water distribution systems.

Most popular related searches

municipal water distribution system

resilient seated gate valve

municipal water distribution

water distribution system

gate valve flange

resilient seated valve

municipal water system

municipal water

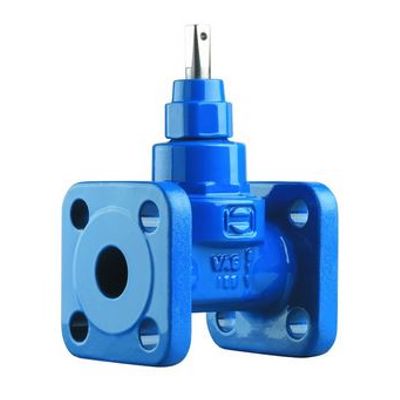

VAG BETA®-HA Gate Valve resilient-seated, with flange on both sides
PN: 16 - DN: 25...32
Productgroup: House Connection Valves
Medium: Water

Sealing system/standard: Resilient seated in accordance with EN 1074 (DIN 3352 - 4A)
Face-to-face length: acc. to EN 558, basic series 15 (DIN 3202, F5)
With flange ends on both sides acc. to EN 1092-2

Body: Ductile iron EN-GJS-400-15 (GGG-40)
Stem: Stainless steel 1.4021
Wedge: Brass with EPDM rubber-lining
Upper part of body: Brass

Internally and externally epoxy coated
