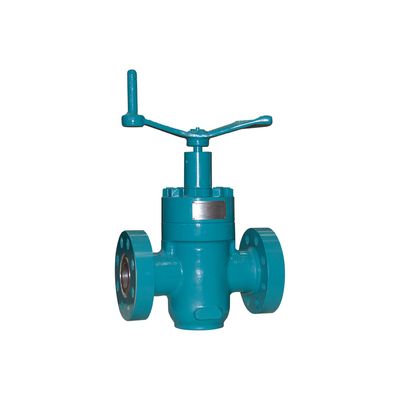

Kurvalf - Model API 6A -Gate Valve

API 6A gate valves are used in drilling or production applications. They work linearly. Hard face trim is preferred against dirty fluids.

Most popular related searches

Size Range: 2 1/16" – 7 1/8"

Pressure Ratings: 2000 - 20000 psi

Bore: Full Bore

End Connections: RTJ

Valve Size: 2 1/16″ – 7 1/8″

Valve Type: Non-Rising Stem

Pressure Class: 2000 – 20000 PSI

End Connection: RTJ

Bore: Full Bore

Operator: Lever / Gear / Actuator

Material: Carbon Steel / Stainless Steel / Duplex / Alloy Steel

Operating Temperature: Low / Standard

Leakage Class: API 6A

Design Standard: API 6A

Face to Face Standard: API 6A

End Connection Standard: API 6A

Test Standard: API 6A

Fire Safe Standard: API 607 / ISO 10497 / API 6FA

Certification: EN 10204 3.1 – 3.2 / 2014-68-EU PED

Size Range: 2 1/16" – 7 1/8"
