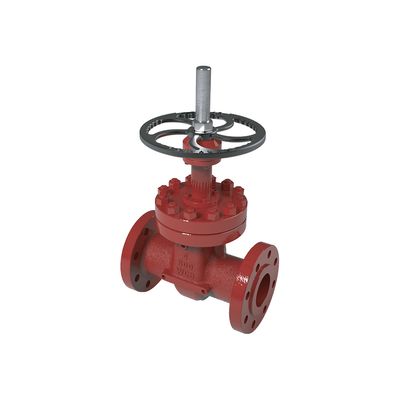

Kurvalf - Model API 6D -Gate Valve

Size Range: 1/2" - 36"

Pressure Ratings: ANSI 150 - 900

Bore: Full Bore

End Connections: RF - RTJ - BW

Valve Size: 1/2″ – 36″

Valve Type: Rising Stem

Pressure Class: ANSI 150 / 300 / 600 / 900

End Connection: RF / RTJ / BW

Bore: Full Bore

Operator: Lever / Gear / Actuator

Material: Carbon Steel / Stainless Steel / Duplex / Alloy Steel

Operating Temperature: Standard

Leakage Class: API 598 / ANSI FC70-2 / ISO 5208

Design Standard: API 6D / ISO 14313

Face to Face Standard: ASME B16.10

End Connection Standard: ASME B16.5 / ASME B16.25/ DIN EN 1092-1

Test Standard: API 6D / API 598

Fire Safe Standard: API 607 / ISO 10497 / API 6FA

Certification: EN 10204 3.1 – 3.2 / 2014-68-EU PED / IP 67 (Gearbox)

1. Easy maintenance.
2. Renewable seats.
3. Available with metal and soft seats.
4. Blow-out-proof stem.
5. Strengthened stem packing is optional.
