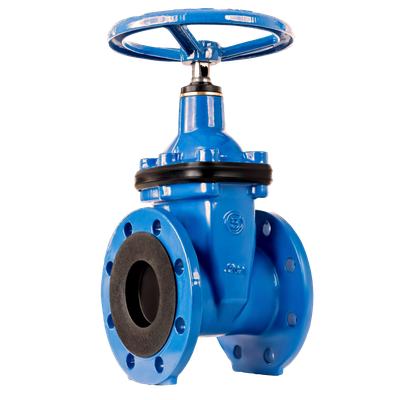

Blucast - Model 115 -Gate Valve (F4)
FromBlucast UAB
Flanged gate valve for drinking water and neutral liquids up to +70°C.Most popular related searches
- Non rising stainless steel stem
- Full bore
- Low closing torque
- Clockwise closing
- Maintenance free
- Guided wedge to ensure correct sealing
- 100% watertight
- Replaceable wedge nut
- No zones of retention
- Dust protection flanges for sizes DN40-DN250
- Edge protection gasket to avoid damage during transportation, storage and assembly for sizes DN40-DN300
- Design in accordance to EN1074 and EN1171
- Face to face dimensions according to EN558-1 (series 14) and DIN 3202 (F4)
- Flange end connections according to EN1092-2: PN10&PN16
- Maximum working pressure: PN16 / 16 Bar
- Working temperature: 0°C - +70°C
- Fully vulcanized wedge in EPDM according to EN681
- Stainless steel bolts
- Color RAL5015
- Powder epoxy coating at least 250 μm thickness
