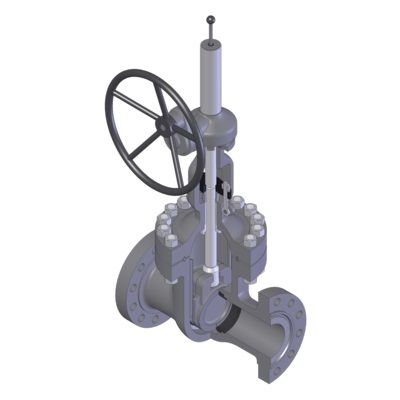

Orion - Model API 600 -Gate Valves

SHARE

Cast or forged steel body, outside screw and yoke, rising stem, non-rising operator, renewable seats, removable yoke sleeve, backseat for repacking under pressure.

Most popular related searches
gate valve
spur gear
stainless steel pipe
pipe coupling

REMARKS:

A lantern ring is supplied upon request, in this case the stuffing box shall be drilled, tapped and fitted with an 1/4” NPT plug or grease fitting.

INSTALLATION REMARKS:

Gate valves are best fit for vertical stem / horizontal flow installation. Special cases can be evaluated and developed on request.

OPERATOR

The spoked handwheel is fabricated from steel pipe. The hub is coupled to the yoke sleeve by means of a key. Larger valves are equipped with a bevel or spur gear gearbox unit.
