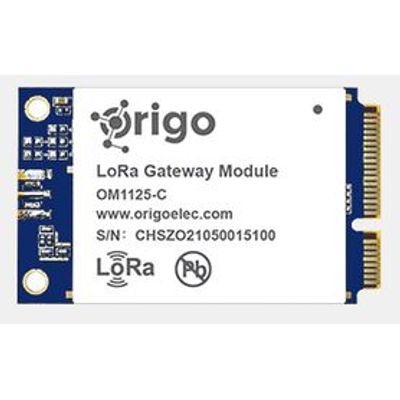

LoRa - Model OM1125 -Gateway Module
OM1125 is a LoRaWAN concentrator card in mPCIe form factor based on Semtech’s SX1301 chipset and 2*SX1255 RF front-end. This mPCIe smart concentrator module can be used in any embedded platform offering a free mPCIe slot with USB/SPI connectivity and capable of providing enough power for the module, enable low-power wide-area communication capabilities to your new gateway design or existing industrial routers/computers. Typically support Linux and widows etc systems.
Most popular related searches
automatic meter reading
industrial router
security sensor
meter reading
LoRaWAN
security network
metering network
meter network
monitoring network
security monitoring
- Compliance to LoRaWAN
- Eight (8) programmable Lora parallel demodulation channels.
- mPCIe form factor based on USB /SPI host interface
- Tx power +27dBm, Rx -142.5dBm
- Supply voltage: +3.3V
- Compact mPCIe form factor TYP. 50.8*30.3*4.7mm (W*L*H)
- Support Linux and widows etc systems.
- Internet of Things
- Automated meter reading
- Security Sensor network
- Location Monitoring
- Industrial Monitoring and control
- Machine to Machine(M2M)
- Module Name OM1125
- Product Description LoRa Gateway Module
- Package Mini-PCIe
- Host Interface USB or SPI
- Dimensions TYP.50.8*30.3*4.7mm(W*L*H)
- Frequency 433MHz, 470~510MHz(Opt.)
- Band Width -400-400KHz
- Tx Power +27dBm typ+30dBm（Opt.）
- Receive Sensitivity Down to -142.5dBm
- Supply Voltage +3.3V
- Power consumption Tx (max)
- Operating Temp -40~+85°C (Industrial Grade)
- Humidity Operating:10%~90%, no condensing
- WAN Protocol ISM Band-LoRa®
- ESD JEDEC.JS-001, Standard ±1kV, Class 2
Ordering information
- Model Description
- OM1125-C 470~510MHz, Suitable for China
- OM1125-W 433MHz, Suitable for Europe, Israel
