Monarch Instrument - Model Track-It (5396-0380) -Gauge Pressure/Temperature Data Logger with Display
Monarch’s gauge pressure loggers are battery-powered, stand-alone devices with a display that can record up to 130,000 pressure/ambient temperature samples for plotting. They are available in a wide variety of ranges and come with USB and Bluetooth® Low Energy (LE) connectivity.
Battery and USB cable are included along with our FREE downloadable Track-It™ DataLogger PC Software and Track-It™ Transporter Android app! All 9 options are available with a NIST Traceable Certificate.
These units are also available with various diaphragm seals. Contact Monarch for details.
Buying direct from manufacturer: Tax-Free • Unlimited Tech Support • Free Shipping for orders over $250 in contiguous USA!

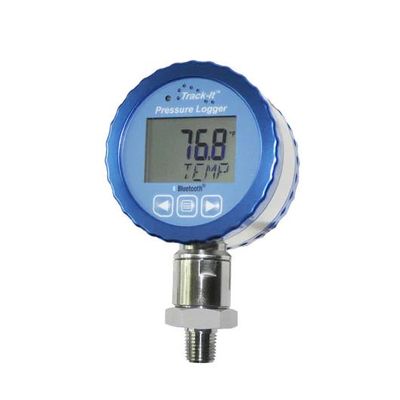

The Track-It™ Gauge Pressure/Temperature Data Logger with Display is a battery-powered, stand-alone, watertight compact data logger that records up to 130,000 samples. It can be configured to record both pressure and ambient temperature or pressure alone to maximize data storage space. Real-time data, alarms, and min/max information can be displayed on the multiline LCD.
The unit is easily configured using the downloadable Track-It™ DataLogger Software. Configure the unit to start or stop recording immediately, at a predetermined time and date, or only when an alarm condition is sensed. The sample storage rate can be set from 10 samples per second up to 1 sample every 24 hours. The user can initiate the recording immediately, manually via the keypad buttons, at some future preset time, or on an alarm condition. With Bluetooth® Low Energy (LE) connection, users can collect recorded data wirelessly using Track-It™ Transporter Android app (available free on Google Play) or a Windows® compatible PC. Note that the onboard data storage is non-volatile so data will not be lost in the event of a depleted battery.
The Track-It™ Gauge Pressure/Temperature Data Logger with Display can be ordered in various ranges (see above). The logger is packaged in a rugged anodized aluminum and stainless-steel housing and has a standard ¼" NPT fitting (½" NPT for 8700 and 14,500 ranges). The replaceable internal lithium battery has up to a 1-year life.
- Industrial Process
- Food Manufacturing
- Water Supply Line
- Hydrant Water Pressure
- Household Water Pressure
- Building Supply
- Municipalities
- HVAC
- Oil and Gas
- Petro Chemical
- Compressors
- Pumps
- Hydrostatic Testing
- Water and Wastewater
- Display live and min/max readings
- Record up to 10 samples per secondHigh accuracy and precision, ASME Grade 3A
- Bluetooth® Low Energy (LE) communication using Windows® compatible PC or Track-It™ Transporter Android App (free to download from Google Play)
- USB interface (cable included)
- Powerful interactive Track-It™ DataLogger Software package (free download)
- Rotate head and display 360 degrees, allows installation in any orientation
- Alarm setpoints and indicators
- User-definable engineering units
- Rugged design
- Ambient temperature range: –4 to 185 °F (-20 to 85 °C)
- Available ranges: 3, 35, 150, 350, 550, 2000, 5800, 8700 and 14,500 PSIG
- 150% over range protection
- ¼” NPT male connection (½" NPT male connection for 8700 and 14,500 ranges)
- Lithium battery included
- Accurate internal clock (1 minute/year)
- NIST Traceable Certificate available
General:
- Record: Sample Rate: User-configured 10 times per second up to 1 every 24 hours
- Record: No. of Samples: 130,000 (dependent upon setup)
- Record Trigger: Two independent triggers
- Multiple trigger modes: Instantaneous, button control, on alarm, time and date (start and stop), day of week
- Record Mode: Fill to end of memory or cyclic, number of samples, time duration
- Display: Two-line, 4½-digit 7-segment LCD and 4-digit alphanumeric display with custom icons, multi-segment bar graph for 0-100%
- indication, backlit
- Alarms: 2 user-programmable alarms (High or Low)
- Communications: Mini B USB Port or Bluetooth LE (if compatible)
- Software: Track-It™ DataLogger Software—Program device, view data (historic or real-time), export to spreadsheet
- Battery: Lithium 1/2AA 1.2Ah
- Life: Up to 1 year typical @ 1 minute sample rate
- (LCD off and Bluetooth LE disabled)
- Enclosure: Anodized Aluminum and 316L Stainless Steel
- Dimensions: 2.94 in. diameter x 1.82 in. deep x 4.78 in. tall including port threads [74.6 mm x 46.3 mm x 121.4 mm]
Measurement:
- Pressure Ranges:
- 0-35, 0-150, 0-350, 0-550, 0-2000, 0-5800 PSI (Absolute or Gauge)
- 0-3, 0-8700, 0-14500 PSI (Gauge only)
- Accuracy: ±0.25% FS
- Resolution: 0.01%
- Overpressure Rating: 1.5X max
- Port Connection: ¼″ NPT male vacuum up to 5800 PSI; ½″ NPT male for higher pressure ranges
- Temperature Range:
- -20 °C to +85 °C /-4 °F to 185 °F
- Accuracy: ± 1 °C 0 to 50 °C / 32 °F to 122 °F
- ± 2 °C -20 to 85 °C / -4 °F to 185 °F
- Resolution: 0.1 °C / 0.2 °F
- *Specifications are subject to change without notice.

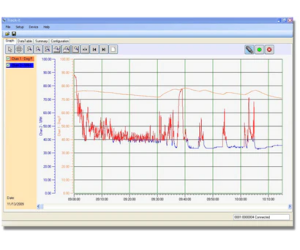

Track-It™ DataLogger Software is a powerful Windows-based software package that is available for use with every Track-It data logger. It allows for easy setup, retrieval, interpretation, and export of the recorded data. Simply connect your Track-It data logger to an open USB port and begin communicating immediately. If your data logger has Bluetooth® Low Energy (LE) capability, users can collect data wirelessly using the Track-It™ Transporter Android app (available free on Google Play).
Advanced features include:
- Real-time data view and data retrieval when connected via USB or Bluetooth®
- Delayed recordings, fixed duration recordings by time or number of samples, multiple record times, manual record by button press, record on alarms
- Sample rates from 10 times a second up to 24 hours; instantaneous, average, maximum or minimum values
- Two Alarms: high or low, latched or momentary, and record under these alarm conditions
- Display of data graphically, digitally, or tabular formats with alarm indication
- Export user-selected data in CSV formats for import into Excel®; filter data to be exported
This software is compatible with Windows 7/8/10/11.
Software Download
All Track-It™ Pressure/Temp Data Loggers are compatible with the free Track-It™ Transporter Android application. The app allows you to use your Android device start/stop recording and transfer data using a USB On-The-Go cable or Bluetooth® LE.
The Track-It™ Transporter Android App is available for free on Google Play:
- Harmonized Tariff Code: 9026200000
- Country of Origin: US
- Export Control Classification Number (ECCN): EAR99
