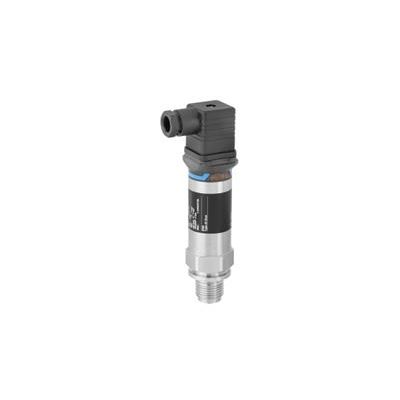

Cerabar - Model PMP11 -Gauge Pressure Transducer
Cost-effective pressure transducer with metal sensor for measurement in gases or liquids. The Cerabar PMP11 is the most price-attractive compact pressure transmitter in its segment. It features a piezo-resistive sensor and is able to measure gauge pressure from 400mbar up to 40bar. The PMP11 is designed to withstand the conditions in the process industry with the use of high quality materials like 316L. It can be used for standard applications in the process industry.
-
Easy and time-saving installation and set up within the plant due to very compact construction and customizable measuring ranges
-
Reference accuracy of 0.5% together with high long- term stability and repeatability ensures a high quality of process monitoring in standard processes
-
Long process availability is underpinned by the stringent use of 316L material and the 100% test coverage during production
Pressure transducer with fully welded metal sensor to measure gauge pressure in gases or liquids.
-
Process connections: Threads
-
Process temperature: -25 to +85°C (-13 to +185°F)
-
Process pressure: 400mbar to +40bar (6 to 600psi)
-
Accuracy: ±0.5% of span
-
Measuring principle
Gauge pressure
-
Characteristic
Cost-effective pressure transducer, piezoresistive sensor with metallic measuring diaphragm
-
Supply voltage
Analogue output: 10…30 VDC
0...10 V output: 12…30 VDC -
Reference Accuracy
0.5 %
-
Long term stability
0.2 % of URL/year
-
Process temperature
-25 °C…+85 °C
(-13 °F…+185 °F) -
Ambient temperature
-40 °C…+70° C
(-40 °F…+158 °F) -
Measuring cell
400 mbar...+40 bar
(6 psi...+600 psi) -
Max. overpressure limit
160 bar (2400 psi)
-
Process connection
Threads:
G1/4, G1/2,
MNPT1/4, MNPT1/2,
DIN13 -
Communication
4...20 mA
0...10 V -
Design approvals
EN 10204-3.1 Final inspection report
Cleaned from oil and grease
