GL - Model VPS2800 -GC Fraction Collector View Prep Station
A Preparative Gas Chromatograph system can collect the target compounds which were separated by Gas Chromatography. The VPS2800 GC fraction collector is designed to work with capillary columns and gives high recovery and pure fractionation. It is possible to collect just a part of a peak, one peak or a group of peaks with the GC fraction collector.
- The minimum trapping temperature of -60 °C is achieved with a Stirling cooling technique that is no needed for Liquid Nitrogen, and can achieve a high recovery
- The sample flow path does not absorb any compounds due to no-cold spots, high temperature and a highly inert flow path
- Fraction mode can be done in automatic or manual
- Can be installed on any type of GC
- Super-insulated oven
- Efficiency cooling in an oven with a fan

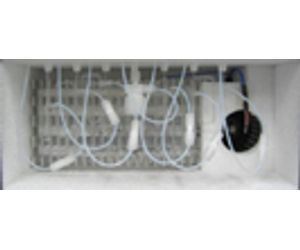

- High recovery with combination of special shape preparative tube
- Selecting Auto / Manual Mode: Fraction mode can be done in automatic or manual

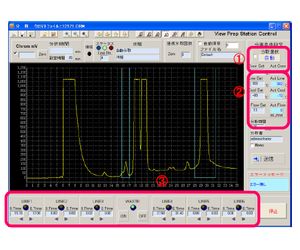

- Easy operation software: With the easy to operate software, you just select a peak in the chromatogram or set a time window in order to collect a peak
- Temperature Control: Setting and monitoring temperatures of the heating oven and the cooling oven
Number of fraction tubes: 7 pcs (Including waste line)
Heating oven temperature: 60 ? - 380 ?
Transfer line temperature: 60 ? - 380 ?
Cooling oven temperature: Forced air : 0 to -30 ?
Cooling block surface : 0 to -60?
(Not frost formation situation under system requirements conditions)
System Requirements: Operating Temperature Range : 10 - 30 ?
(Recommended : 18 - 27 ?)
Operating Humidity Range : Less than 85 % RH(Recommended : Less than 60 % RH)
Power supply: AC220 – 240 V (+/- 10 %) 50/60 Hz, 1200 VA
Dimensions: 500 (W) x 500 (D) x 440 (H) mm
(Excluding protruding parts)
Weight: Approx. 45 kg
Recommended OS: Windows 10 Professional (32 bit / 64 bit version), Windows Vista Business
CPU / Memory: Minimum 4 GB
Communication port: RS-232C 1 port
Display resolution: More than 1024 x 768
