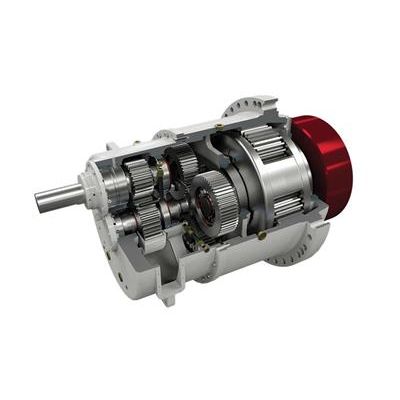

Santasalo - Model Quatro+ Planetary -Gearing
Our Quatro+ planetary gear series offers a core platform of planetary gearboxes based on modular design principles. Fast and flexible customer specific adaptations are available, providing rapid, reliable gearboxes for all industrial applications. The Quatro+ gearbox range is known for its high power density within a space saving design, as well as its ease of service and maintainability.
Most popular related searches
planetary gearing
wheel loader
vertical roller mill
helical gear box
water modeling
vertical mill
cement mill
roller conveyor
- Planetary and helical planetary gearboxes for all applications up to 1,500kW
- Configuration options including right angle triple reduction, right angle double reduction and parallel shaft double reduction gearing
- 15 design sizes
- 2 – 5 stage gearing options
- Up to 1,427 kNm nominal output torque
- Flange and foot mounting options
- Solid and hollow output shaft options
- Agitators
- Auxiliary drives
- Bucket wheel drives
- Cement vertical and roller mills
- Chipboard press
- Conveyors
- Crane hoist
- Extruders
- Paper machinery
- Pumps
- Food & sugar processing press
- Track drive bucket and wheel loader
- Water turbine
With a huge range of gearbox types, sizes and configurations, Quatro+ delivers adaptable planetary gearing solutions for all industrial applications. View our full range of Quatro+ sizes and configurations.
