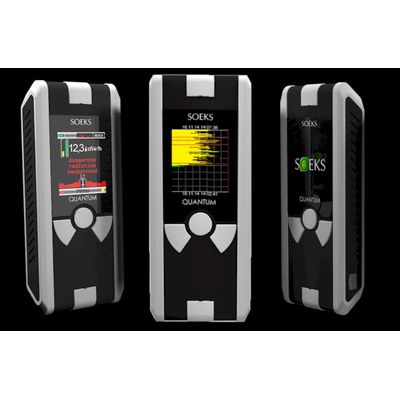

Soeks - Model Quantum -Geiger Counter/ Dosimeter/ Radiation Detector
Radiation measurement: Like the other Geiger counters in the SOEKS range, the Quantum is used to identify potential radioactive contamination in food products, water, construction materials, as well as your local environment. However, this model is for professional usage. As such, it combines twin Geiger-Muller sensor tubes for extreme accuracy of measurement. It is literally twice as sensitive as any of our other models. When evaluating foodstuffs, it can accurately analyse radiation through shrink-wrapped packaging which means removal of the wrapping is not necessary. The SOEKS Quantum estimates background radiation by the magnitude of ionizing radiation (gamma and beta-particle flux) based X-ray radiation.
- Heightened measurement accuracy via twin Geiger-Muller sensors
- Measurement of accumulated radiation dose in excess of 3 years
- Background radiation measurement history over the course of several days
- Direct data transfer to Windows PC via USB
- Data can be exported in comma delimited or XLS formats
- The most powerful processor of dosimeters
- Quick measurement in less than 10 seconds
- Increased battery life up to 700 hours per charge
- Firmware update via the Internet
- New "soft touch" body design
- New graphical interface
As a result of measurement you will see the exact amount of indicated background radiation level in mSv/h or mR/h together with a message confirming the level of safety in the background radiation revealed:
GREEN - Normal Background Radiation
AMBER - High Background Radiation
RED - Dangerous Background Radiation
Most radiation detectors display the range of exposure from 5 to 1000 mR/h. Thanks to their state of the art modern Geiger-Muller sensors, the SOEKS range is from 0.5 to 100 000 mR/h.
- 2x SBM-20-01 Geiger-Muller sensors for very high accuracy
- Up to 700 hours autonomy on a single charge
- Measuring time: approximately 5 seconds -Accumulated dose measurement up to 1000 Sv
- Storage duration of the accumulated dose up to 10 000 hours
- Background radiation history: not less than 24 hours in 10 second increments
- Beta particle measurement range: (Sr-90 + Y-90) 10 + 105 cm-2 min-1
- Gamma radiation: 0.05 + 3.0 MeV
- Beta radiation: 0.1 + 3.0 MeV
- Accumulated radiation dose measured and stored for up to 3 years
- Display: continuous, numerical, graphical
- Display type: Color TFT with 128 x 160 px resolution
- Operating temperature: 20 to 60°c
- Data transfer of measurement history to PC via SOEKS Device Manager software
- New processor makes the Quantum the fastest SOEKS device to date
- Device firmware receives updates via internet (just connect to a PC)
- Set your own thresholds for both background and cumulative radiation
- Displays date and time and even features an alarm clock
- Multiple sound levels and combination of alarm sounds
- 2 year manufacturer`s warranty (exchange if defective)
- Device service life is at least 7 years
Height x Width x Depth : 130 x 52 x 18 mm
Product Weight (without batteries): 71 g
1x SOEKS Quantum Geiger Counter
2x AAA Rechargeable Batteries
1x USB Connection Cable
1x Battery Charger
1x Operating Instructions
1x Soeks Device Manager software manual
