Nippon FastGene® FAS-Digi PRO - Model GP-07LED -Gel Imaging System

SHARE

Network-compatible gel imaging system with Blue/Green LED technology for DNA, RNA, and protein visualization. Safe – No damage of DNA, no risk of UV exposure for user. Flexible – For the detection of DNA/RNA and proteins. Ultrasensitive – Even faint bands are detected. Versatile – Compatible with all DNA dyes. Intuitive – Very user-friendly software. Network-compatible – Simple image transfer. Largest illuminated imaging area combined with very compact design.

Most popular related searches
gel imaging system
gel imager
gel documentation
agarose gel
nucleic acid
zoom lens
gel documentation system
CMOS camera
DNA detection
DNA technology

The Revolution for Nucleic Acid Gel Documentation – ‘Made in Germany’

The FastGene® FAS-DIGI PRO is our topseller gel imaging system for the detection of DNA and RNA in agarose gels.

The unique Blue/Green LED technology, together with  a very easy to use software and a top camera, enables agarose gel documentation of highest quality.

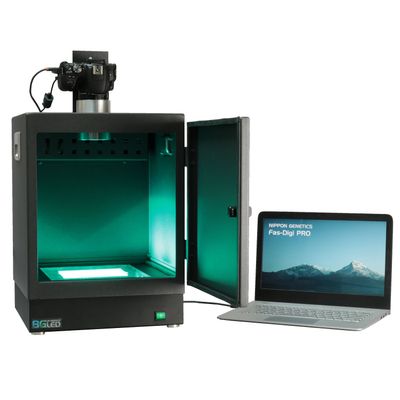

The FastGene® FAS-DIGI PRO is a fully networkable Gel Doc System, which enables simple transfer of images when connected to an external PC.

Blue/Green LED Technology – for a safe detection of  DNA and RNA

The heart of the FAS-DIGI PRO is the revolutionary Blue/Green LED technology.

The FAS-DIGI PRO is composed of  a strong Blue/Green LED transilluminator that emits visible light at a wavelength of 470 – 520 nm. In contrast to harmful UV light, no nucleic acids are damaged with Blue/Green LEDs. The Blue/Green LED technology enables the detection of all common green (e.g., MIDORIGreen, SYBRTM Green)), yellow (e.g., SYBRTM Safe) and red (e.g., ethidium bromide or GelRedTM) DNA dyes.

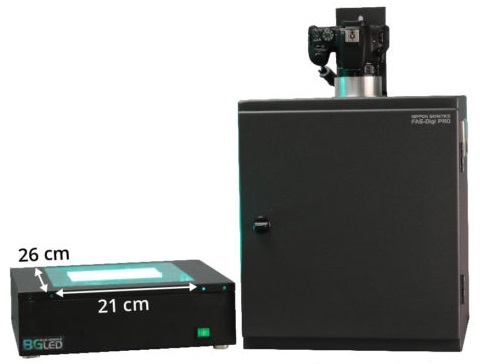

The hood of the FAS-DIGI PRO can be easily removed. This allows  a very easy excision of DNA bands on the huge Blue/Green LED  illuminated work surface of 21 cm x 26 cm. A superb uniform transillumination is guaranteed by 12 LED arrays at each side.

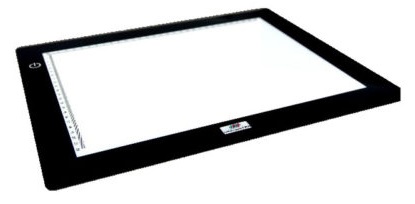

The detection of protein is possible due to the additionally included white LED table which comes with an integrated battery.

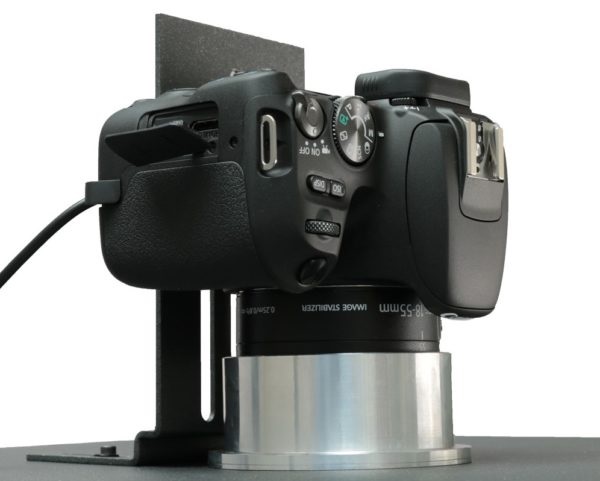

The very light-sensitive Canon camera has a very large APS-C CMOS sensor.
The camera is connected directly to the power supply system of the FAS-DIGI PRO and is thus constantly supplied with power.

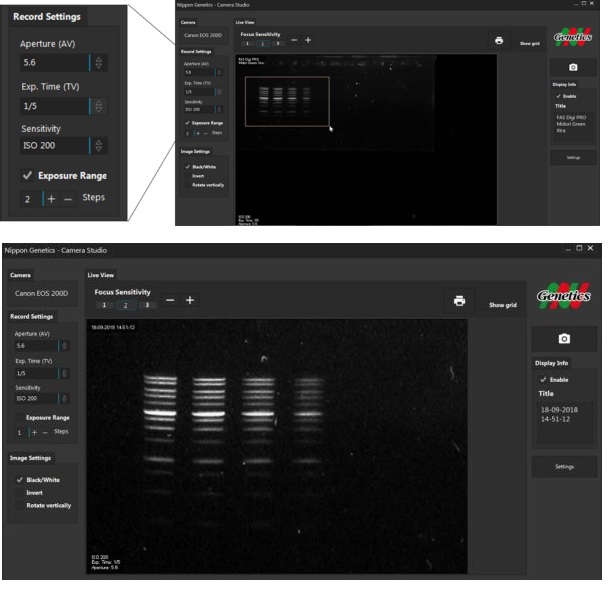

The FAS-DIGI PRO is delivered together with the intuitive NIPPON Genetics Camera Studio software. This software enables the optimization of all important camera settings (aperture, exposure time, zoom and focus) in real time.

Camera

  • Camera type: Canon 250D, 24 MPixel (Resolution: 6000×4000), APS-C Sensor DIGIC 8 Processor, WiFi enabled
  • Image Sensor: APS-C sized CMOS Sensor
  • Resolution/Image Size: 6000 x 4000 pixel (24 MPixel)
  • Bit Output Format: 8-bit
  • Aperture: F/4-5.6
  • Lens: 18-55 mm zoom Lens, manual
  • Exposure time: 0.00025 to 30 seconds
  • Filter: FastGene Amber Filter for the lens

Control Software

  • Control Software: NIPPON Genetics Camera Studio v1.0, WINDOWS 10
  • Saved Image Format: TIFF, JPEG
  • Image storage: Host computer dependent
  • Interface: Host computer dependent.

Hood

  • Power unit: Power supply for transilluminator and camera
  • Access: Front door, 180°opened
  • Filter: FastGene Amber Filter Shield

Illuminator

  • 1) Built-in Blue-Green light source: 470-520 nm: View Area: 26 x 21 cm
  • 2) White LED Transilluminator: View Area: 22 x 16 cm

Unit

  • Material: Painted aluminum metal
  • Rated Voltage: 100-240 V~, 50/60 Hz, A
  • Dimension (H x L x W): 57 x 35 x 32.5 cm
  • Weight: 14 kg
