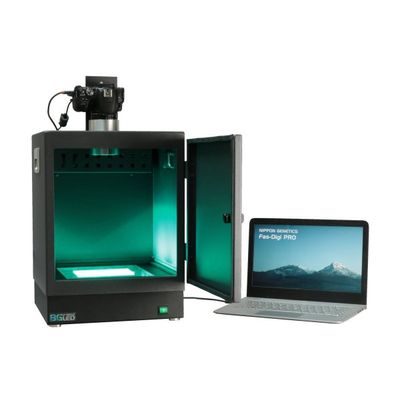

NIPPON Genetics FastGene - Model FAS-Digi PRO -Gel Imaging System

The unique Blue/Green LED technology, together with  a very easy to use software and a top camera, enables agarose gel documentation of highest quality.

The FastGene® FAS-DIGI PRO is a fully networkable Gel Doc System, which enables simple transfer of images when connected to an external PC.

Blue/Green LED Technology – for a safe detection of  DNA and RNA

The heart of the FAS-DIGI PRO is the revolutionary Blue/Green LED technology.

The FAS-DIGI PRO is composed of  a strong Blue/Green LED transilluminator that emits visible light at a wavelength of 470 – 520 nm. In contrast to harmful UV light, no nucleic acids are damaged with Blue/Green LEDs. The Blue/Green LED technology enables the detection of all common green (e.g., MIDORIGreen, SYBRTM Green)), yellow (e.g., SYBRTM Safe) and red (e.g., ethidium bromide or GelRedTM) DNA dyes.

The transilluminators

The hood of the FAS-DIGI PRO can be easily removed. This allows  a very easy excision of DNA bands on the huge Blue/Green LED  illuminated work surface of 21 cm x 26 cm. A superb uniform transillumination is guaranteed by 12 LED arrays at each side.

Camera

• Camera type : Canon 250D, 24 MPixel (Resolution: 6000×4000), APS-C Sensor DIGIC 8 Processor, WiFi enabled
• Image Sensor : APS-C sized CMOS Sensor
• Resolution/Image Size : 6000 x 4000 pixel (24 MPixel)
• Bit Output Format : 8-bit
• Aperture : F/4-5.6
• Lens : 18-55 mm zoom Lens, manual
• Exposure time : 0.00025 to 30 seconds
• Filter : FastGene Amber Filter for the lens

Control Software

• Control Software : NIPPON Genetics Camera Studio v1.0, WINDOWS 10
• Saved Image Format : TIFF, JPEG
• Image storage : Host computer dependent
• Interface : Host computer dependent.

Hood

• Power unit : Power supply for transilluminator and camera
• Access : Front door, 180°opened
• Filter : FastGene Amber Filter Shield

Illuminator

• 1) Built-in Blue-Green light source : 470-520 nm
• View Area : 26 x 21 cm
• 2) White LED Transilluminator :
• View Area : 22 x 16 cm

Unit

• Material : Painted aluminum metal
• Rated Voltage : 100-240 V~, 50/60 Hz, A
• Dimension (H x L x W) : 57 x 35 x 32.5 cm
• Weight : 14 kg
