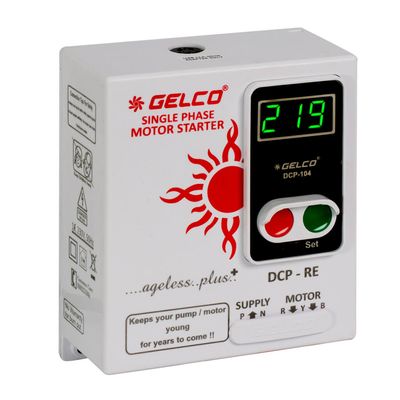

Gelco - Model DCP-RE -Single Phase Motor Starter & Control Panel
Weight (kg): 0.678. Length (cm): 17.5. Width (cm): 15. Height (cm): 9.
Most popular related searches
water level switch
automatic level switch
level switch
domestic water industry
water industry
weight indicator
water heating
domestic water
Operates and protects oil filled pumps, used for drawing water, at domestic, industrial, and agricultural level.
- Prevents over heating due to fluctuation of voltage.
- Automatically restarts the equipment, after power comes back.
- Prevents from any damage due over usage or usage of worn out/damaged equipment.
- Time based automated Switch On – Switch Off facility.
- Displays information regarding the supply of current.
- Checks the water level and automatically switches off the motor to prevent overflowing of water.
- Checks the water level and automatically switches off the motor in case of less water to prevent over heating/burning of the motor.
- Input supply: 230V, 50Hz
- Load capacity: 16Amp.(0.75 HP -3 HP)
- OverVoltage Protection:Above 280V
- Low Voltage Protection: Below 140V
- Electronic Overload Protection: 2Amp –16Amp.(Settable)
- Electronic Dry-Run Protection: 0.01Amp –14.4Amp. (Setable)
- ON Time Delay/OFF Time delay:(1 -240 Minutes)
- Cyclic Timer
- Weight: 0.678 kg
- Dimensions: 17.5 × 15 × 9 cm
