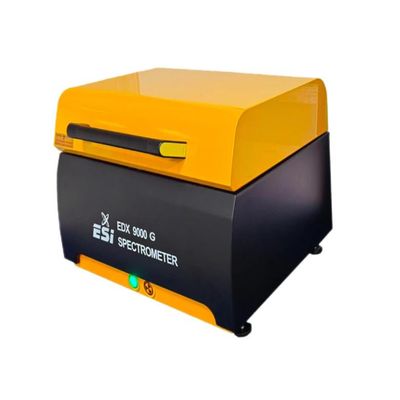

ESI - Model EDX-9000G -Gemstone Analysis Spectrometer Natural/Synthetic Gemstone Identifier
Simply the Best >Quick analysis: Results are available in as fast as 30 seconds, enabling rapid identification of natural and artificial gemstones .>Nondestructive: Measurement will not damage the sample at all. >No sample preparation required, simple and easy to use. >One-time analysis of all characteristic elements in the gemstone. >No need for any consumables or chemical reagents, low cost of use. >Can analyze and identify a variety of gemstones: sapphire, ruby, emerald, tanzanite, Hetian jade, paraiba tourmaline, spinel, chrysoberyl, etc.

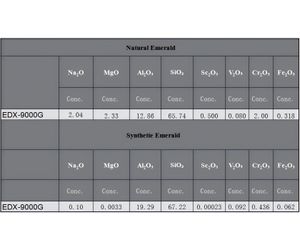

Energy dispersive X-ray fluorescence (EDXRF) is an important tool for identifying the authenticity and origin of colored gemstones. Due to different geological environments, precious gemstones from different places, such as rubies, emeralds or sapphires, often show different concentrations of characteristic trace element combinations. For example, the identification and quantitative analysis of these elements can be traced back to the origin of emeralds, such as Colombia, Brazil, Afghanistan, Zambia or Zimbabwe. Similarly, the presence of certain trace elements helps to distinguish between valuable natural gemstones (such as rubies) and almost worthless synthetic crystals (such as synthetic rubies).
The EDX9000G combines current advanced XRF energy dispersion spectroscopy and FP (Fundamental Parameter Method) software, while integrating a comprehensive gem test database (GEMLAB). By quickly identifying characteristic spectral lines and elements in gemstones, it provides users with an efficient and accurate method of identifying natural and synthetic gemstones.
Gemstone processing factory
Gold, silver, jewelry, and gem store
Gem trading center
Quality inspection department
Analysis and testing center
Pawnshop
Size of Spectrometer: 560mm*380mm*410mm
Size of sample chamber：460mm*310mm*95mm
Size of Vacuum sample chamber：Φ150mm×75mm
Weight: 45Kg
Element Range：Na11-U92
Detector：SDD
DPP Analyzer: 4096 Channel
Sample observation system: 5-megapixel high-definition CCD camera.
Excitation Source：Beryllium window high-power light tube50W X-ray tube
Power supply：220ACV 50/60HZ
Environment：-10 °C to 35 °C
>Standard
Ag- Calibration standard
Vacuum pump
Gemstone Sample cup
USB cable
>Optional
Mill machine
Gemstone-specific testing
Factory and calibration report of the instrument
Warranty card
Fast
Nondestructive
Intuitive
Simple to operate

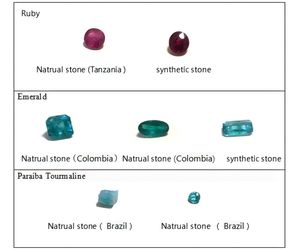

Quickly distinguish between artificial and natural gemstones, and identify the origin of gemstones
High-definition built-in camera, clearly displaying the sample area detected by the instrument
Low light spot (1mm, minimum 0.5mm), can detect small gemstone samples
