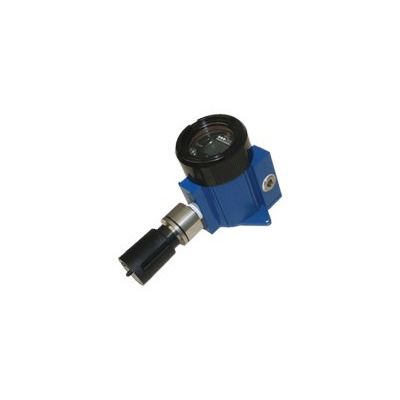

Otis - Model OI-6000 -Gen II Ambient Air Gas Sensor Assembly
The Otis Instruments, Inc. Model OI-6000 Gen II ambient air gas sensor assembly is a wired, WireFree, or “Notis” sensor assembly that uses a Catalytic Bead, Electro-Chemical, PID, or Infrared sensor element to detect a variety of gases. The device comes standard with a 102 x 64 graphical LCD screen, Otis Instruments standard three-button interface, Otis-blue custom explosion-proof enclosure, and non-intrusive magnetic switches.
The OI-6000 Sensor Assembly is an innovative wired or wireless gas detection system designed to monitor gas in hostile environments without the use of wires or conduit from the controller to the sensor. The OI-6000 features 4-20mA (3-wire) or RS-485 Modbus output, and can be customized to offer relay and radio (900MHz or 2.4GHz) options.
The OI-6000 Sensor Assembly`s key feature is non-intrusive calibration and configuration. With all adjustments made at the sensor assembly, one-man non-intrusive calibration is quick, easy, and allows the sensor housing and enclosure to remain Class I, Division 1, Group C and D certified while in the field. Non-intrusive calibration is made possible by using an Otis Instruments, Inc. distributed magnet to activate the MENU, ADD, and SUB buttons.
The device has been designed to reject EMI and other forms of interference in order to avoid false gas readings.
Features such as the auto-setting Null, relay/alarm tests, and system diagnostics make this device a truly remarkable gas detection system.
- Non-intrusive calibration with MENU, ADD and SUB
- Glass lid for viewing amplifier display
- Explosion and weather proof custom Otis-blue enclosure
- Rain/splashguard for sensor protection
