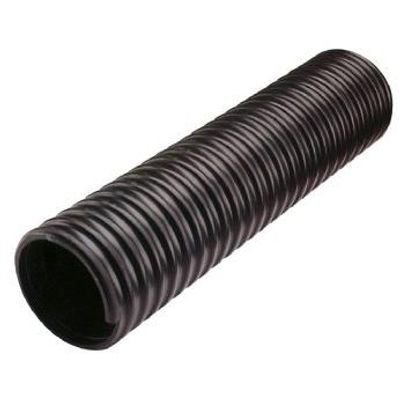

Lev-Co - Model GPH -16-001 -General Duty Hose - Industrial Hose & Duct Work

The GPH General Duty Hose is a lightweight TPR coated polyester fabric with wire reinforcement. This hose has been optimally designed for low temp vehicle exhaust applications, temp ranges between60°F - 275°F.

• Material: Polyester fabric, neoprene coated
• Construction: Single-ply fabric over fully covered spring steel spiral
• Diameters: 1.5” to 36”
• Weight = 0.14lbs/ft x per inch I.D. of Hose
• Length: 25 ft
• Compression Ratio: 5:1
• Temperature Range: -40°F to +250°F
• Color: Black

• Lightweight makes this hose easily maneuverable
• Low-cost
• Medium temperature resistance up to 350*F
• Medium abrasive resistance, good for non-flammable particles
• Withstands static pressure up to 8 inch WG

Top 5 contaminants/processes/applications:

• Dust
• Fume
• Smoke
• Chemical Fumes
• Plastic Fumes

Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

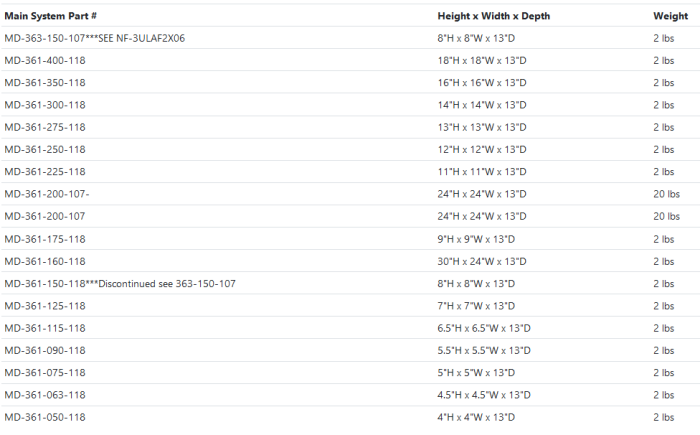

MD-361-050-118
2 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F. Price per foot. (25` Length Minimum)

MD-361-063-118
2.5 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F. Price per foot. (25` Length Minimum)

MD-361-070-118
2.8 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F. Price per foot. (25` Length Minimum)

MD-361-075-118
AF2 hose
MD-361-090-118
3.5 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F, intermittent to +300F. Price per foot. (25` Length Minimum)

MD-361-100-118***Disc replaced by GPH-4
4 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement.

MD-361-115-118
4.5 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F, intermittent to +300F. Price per foot. (25` Length Minimum)

MD-361-120-118
4.8 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F. Price per foot. (25` Length Minimum)

MD-361-125-118
5 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F. Price per foot. (25` Length Minimum)

MD-361-140-118
5.5 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F. Price per foot. (25` Length Minimum)

MD-361-150-118***Discontinued see 363-150-107
6 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F. Price per foot. (25` Length Minimum)

MD-361-160-118
6.4 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F. Price per foot. (25` Length Minimum)

MD-361-170-118
6.8 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F. Price per foot. (25` Length Minimum)

MD-361-175-118
7 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F, intermittent to +300F. Price per foot. (25` Length Minimum) Price Update 25/11/2010

MD-361-200-107
8 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F. Price per foot. (25` Length Minimum

MD-361-200-107-
All Black----8 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F. Price per foot. (25` Length Minimum)

This hose is all black

MD-361-225-118
9 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F, intermittent to +300F. Price per foot. (25` Length Minimum)

MD-361-250-118
10 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F. Price per foot. (25` Length Minimum)

MD-361-275-118
11.0 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F. Price per foot. (25` Length Minimum)

MD-361-300-118
12 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F. Price per foot. (25` Length Minimum)

MD-361-325-118
13.0 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F. Price per foot. (25` Length Minimum)

MD-361-350-118
14 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F, intermittent to +300F. Price per foot. (25` Length Minimum)

MD-361-400-118
16 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F, intermittent to +300F. Price per foot. (25` Length Minimum)

MD-363-150-107***SEE NF-3ULAF2X06
6 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F. Price per foot. (25` Length Minimum)

MD-363-200-118
SANTO L, 8" diameter. with Blue wire
