Ashcroft - Model DG25 - General Purpose ...

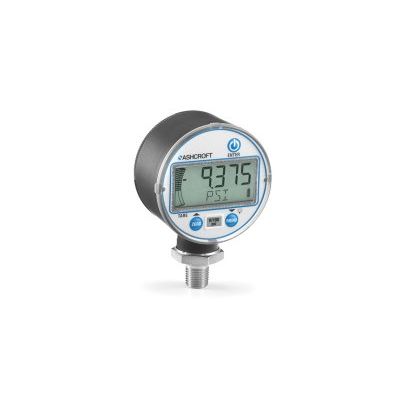

Ashcroft - Model DG25 -General Purpose Digital Gauge

FromAshcroft Inc.

SHARE

The Ashcroft DG25 general purpose digital pressure gauge provides exceptional performance, stability and reliability. The laser welded stainless steel sensor and socket make this product suitable for use with a wide variety of pressure media in demanding industrial applications. The DG25 was designed with OEM in mind and can easily be custom configured to meet unique requirements.

Most popular related searches

digital pressure gauge

material strength testing

materials strength testing

protective boot

torque monitoring

pressure monitoring

hydraulic pneumatics

material testing

hydraulic testing

Large LCD display
Push-button menu navigation
9 engineering units: 1 field-programmable
Min. / Max. function feature records low and high pressure events
Bar graph display
Wide variety of pressure connection thread options
Protective boot (optional)
Customized keypad (optional)

Accuracy: ±0.5% terminal point (standard) / ±0.25% (optional)
Pressure Ranges: Vacuum to 25,000 psi
Full 5 digital LCD display
Case size: 2 1/2"; polycarbonate / ABS
IP67 weatherproof enclosure
Wetted materials: Laser welded 316L stainless steel / and 17-4 Ph stainless steel

The DG25 digital pressure gauge is ideal where precise and reliable pressure measurement is essential:

Industrial Market:

Hydraulics and Pneumatics
Test and Measurement
Specialized OEM Equipment

Process Applications:

Material Strength Testing
Weighing
Torque Measurement
