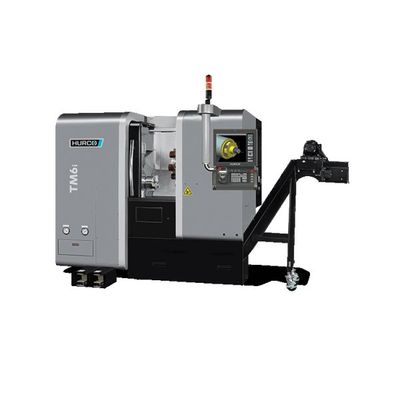

Hurco - Model TM6i (TM6i VDI) -General Purpose Turning Centres System
The small footprint, large work cube, chip management system, and affordable price tag of our slant-bed CNC lathes in the TM Series make small batch manufacturing profitable.
Most popular related searches
TRAVELS & CAPACITY
- Distance Between Centres : 403 mm
- Swing Over Bed Diameter : 405 mm
- Swing Over Cross Slide Diameter : 240 mm
- Max. Turning Diameter : 316 (215) mm
- Max. Turning Length : 340 (335) mm
- Max. Bar Capacity : 45 mm
- X, Z Axis Travel : 176 (168) x 356 mm
- Spindle Power : 13 kw
- Max torque high gear : 113,9 Nm @ 1,090 RPM
- Spindle Nose : A2-5
- Chuck Diameter : 169 mm
TURRET
- Tool Type : Slotted Disc
- Tool Capacity : 12 Stations
- Turret Index Time-Adjacent : 0.5 seconds
- Turret Index Time-Furthest : 1.5 seconds
FEEDRATES
- Rapid Traverse X,Z Axis : 30, 30 m/min
SIZE
- Machine Weight : 3180 kg
