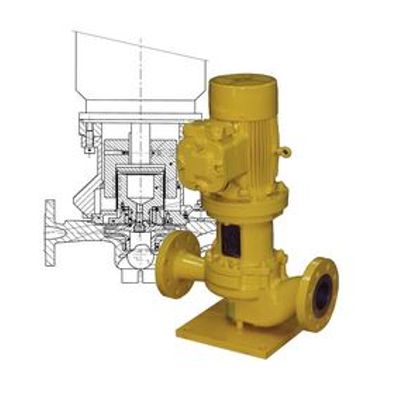

HMD Kontro - Model GSV -Frame 1 -General Service Vertical Sealless Magnetic Drive Pumps

SHARE

The GSV range of pumps is currently limited to one hydraulic – the 3x3x8. This pump has the same hydraulic performance as the GSA 3×1.5×8 but it should be noted that its connection sizes are different, per the GA drawings.

Most popular related searches
sealless magnetic drive pump
magnetic drive pump
magnetic drive sealless pump
magnetic pump
gaskets
sealless pump
vertical pump

In essence this is a standard GSA pump with a vertical casing mated to it.

The GSV pumps can be supplied with the following:-

  • 22kw Maximum motor rating (DA8 coupling)
  • ANSI 150lb or PN16 Flanges only – Limited to 18.9 Bar maximum
  • High temperature builds – limited to 205 oC (400 oF)
  • PTFE/PFR o-rings and gaskets
  • Flanged drain connection
  • Materials limited to Carbon Steel casing or 316ss only
