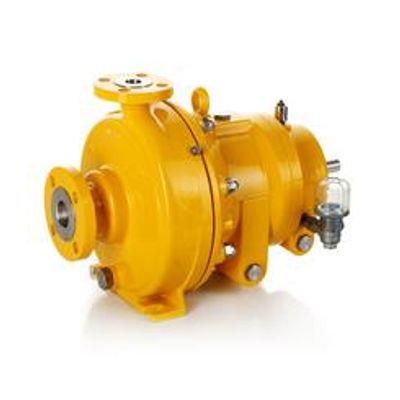

HMD KontroModel GS - Frame 1 -General Service Vertical Sealless Magnetic Drive Pumps

SHARE

The GS (General Service) range of pumps from HMD Kontro are versatile pumps which are designed to cover a wide range of applications using minimum pump models through maximising component interchangeability. The range includes the GSA (ASME standard pump) and the GSI (ISO DIN standard pump) with a GSL option also available for temperatures down to -100°C (-150°F).

Most popular related searches

Benefits Of HMD Kontro GS Pumps:

  • Sealless design for total product containment
  • Suitable for hydrocarbon, toxic, aggressive, hot and valuable products
  • Conform to ISO and ASME standards
  • High efficiency wet ends
  • Designed to ensure maximum flow and head coverage across all ranges
  • Choice of metallic materials of construction
  • One fully confined casing / containment shroud/ shell joint

GS pumps are typically used in toxic, aggressive, hot, crystallising and high value processes. They are designed to comply with specifications required by the oil, gas, petroleum and heavy chemical industries.

Our pumps combine cutting-edge technology with over seventy years of expertise and experience to give you complete piece of mind.

Product Security – Magnetic drive sealless pumps are the safest and most robust means for liquid transfer. By eliminating the seal, the primary opportunities for leaks associated with traditional sealed pumps are completely removed.

Efficiency – By improving performance and reducing maintenance calls, sealless magnetic drive pumps can dramatically lower downtime and lost production. In sum, this equates to maximised efficiency that can be seen on your bottom line.

Reliability – Sealless magnetic drive pumps have proven their reliability in even the most severe climate conditions, from the frozen tundra of Siberia to the deserts of the Middle East and the humid climes of Louisiana’s refineries. In fact, there are  HMD Kontro pumps that have been in operation for over 30 years and are still running today.

Safety – HMD Kontro sealless magnetic drive pumps are manufactured to conform to international design and safety standards, including ATEX, ISO, API and ANSI requirements.  Plus, with no mechanical seals to leak hazardous chemicals, these pumps offer a clear choice for process industry professionals who regularly deal with volatile or high value materials.

Cost-effective – Sealless magnetic drive pumps require less monitoring and maintenance than traditional sealed designs, equating to substantial savings over the life of the pump.

Service – Global service centres keep HMD Kontro sealless magnetic drive pumps operating with peak performance.  Standard pumps and parts are available from the factory and in the field.

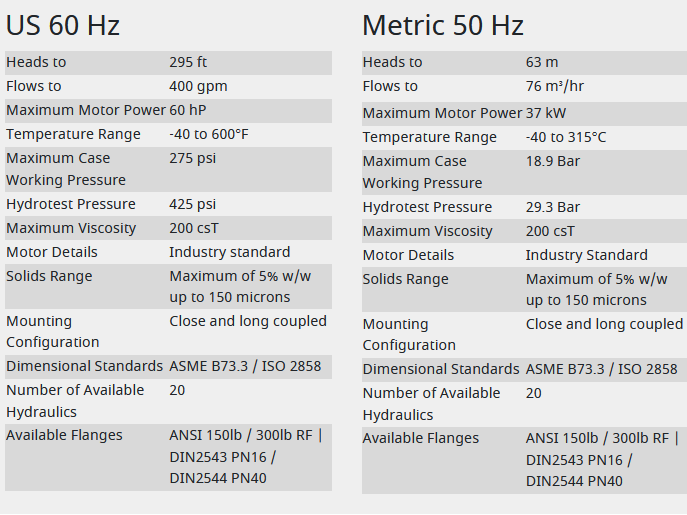

  • Flows to 70 m³/hr (308 gpm)
  • Heads to 61 m (200 ft)
  • Pressure 18.9 bar / 275 psi
  • Temperature Range -40 to 315°C (-40 to 600°F )

Chemical Processing

  • Chlor-Alkali
  • Pesticides
  • Insecticides
  • Herbicides
  • Fertilizer

Hydrocarbon Processing

  • Sour water
  • Sulfuric acid
  • Benzene
  • Xylene
  • Toluene

Upstream

  • Produced water
  • LACT

Aquatic and Marine

  • Seawater
  • Caustic

Battery Manufacturing

  • Sulfuric acid
  • Potassium hydroxide

Biofuels

  • Bio-diesel
  • Ethanol

Food and Beverage

  • Fragrances

Mining

  • Sodium cyanide
  • Sulfuric acid
  • Hydrochloric acid

Pharmaceutical

  • Silicon oil (Heat transfer fluid)

Pulp and Paper

  • Chlorine
  • Sulfuric Acid

Semiconductor Manufacturing

  • Hydrofluoric acid
  • Sulfuric acid

Steel Finishing, Pickling, Etching and Plating

  • Hydrochloric acid

Water and Wastewater Treatment

  • Sodium hypochlorite
  • Sodium hydroxide
  • Sulfuric acid
  • Ferric Chloride
