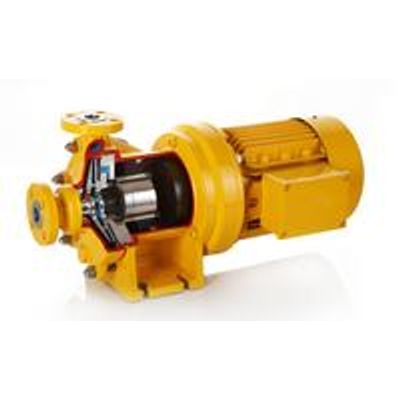

HMD Kontro - Model GTA/GTI -General Transfer Sealless Magnetic Drive Pumps
The GT product is not constrained by any international dimensional or performance specifications. The pumps are close coupled construction and can be supplied free standing or baseplate mounted. Prime mover specifications of all denominations can be catered for.
The pumps are offered with a range of Synchronous Magnet Drives rated to match prime mover performance.
All components are interchangeable and options exist to select either ANSI standard (imperial with the exception of the impeller fixing) or ISO standard fastners.
The standard materials of construction are stainless steel with silicon carbide internal bearings.
Design range limits
The GT pump is designed to operate from -40°C up to +260°C, -40°F up to +500°F without the need for any ancillary cooling medium. Design working pressure is 18.9 bar, 275 psi.
- Seal/less design – total product containment – ideal for hydrocarbon, petrochemical, toxic, aggressive, hot, crystallising and valuable product.
- Modular/lnterchangeable high efficiency wet end, designed to ensure maximum flow/head coverage across all GT product range.
- Modular/lnterchangeable high efficiency magnetic couplings.
- Choice of various metallic materials of construction.
- One casing/containment shroud/shell design
- Casing gasket fully confined to eliminate ‘Blowout’ risk.
- Various suction and discharge flange connection options.
- Maximum interchangeability exists between spare parts for the entire range.
- Cartridge assemblies allowing fast replacement of the rotating element.
- Internationally approved pressure vessel standard: ASME VIII code.
Product Security – Magnetic drive sealless pumps are the safest and most robust means for liquid transfer. By eliminating the seal, the primary opportunities for leaks associated with traditional sealed pumps are completely removed.
Efficiency – By improving performance and reducing maintenance calls, sealless magnetic drive pumps can dramatically lower downtime and lost production. In sum, this equates to maximised efficiency that can be seen on your bottom line.
Reliability – Sealless magnetic drive pumps have proven their reliability in even the most severe climate conditions, from the frozen tundra of Siberia to the deserts of the Middle East and the humid climes of Louisiana’s refineries. In fact, there are HMD Kontro pumps that have been in operation for over 30 years and are still running today.
Safety – HMD Kontro sealless magnetic drive pumps are manufactured to conform to international design and safety standards, including ATEX, ISO, API and ANSI requirements. Plus, with no mechanical seals to leak hazardous chemicals, these pumps offer a clear choice for process industry professionals who regularly deal with volatile or high value materials.
Cost-effective – Sealless magnetic drive pumps require less monitoring and maintenance than traditional sealed designs, equating to substantial savings over the life of the pump.
Service – Global service centres keep HMD Kontro sealless magnetic drive pumps operating with peak performance. Standard pumps and parts are available from the factory and in the field.
- Flows to 37 m³/hr (163 gpm)
- Heads to 58 m (190 ft)
- Pressure 29.3 bar/425 psi
- Temperature Range -40 to 260°C (-40 to 500°F)
Chemical Processing
- Chlor-Alkali
- Pesticides
- Insecticides
- Herbicides
- Fertilizer
Hydrocarbon Processing
- Sour water
- Sulfuric acid
- Benzene
- Xylene
- Toluene
Upstream
- Produced water
- LACT
Aquatic and Marine
- Seawater
- Caustic
Battery Manufacturing
- Sulfuric acid
- Potassium hydroxide
Biofuels
- Bio-diesel
- Ethanol
Food and Beverage
- Fragrances
Mining
- Sodium cyanide
- Sulfuric acid
- Hydrochloric acid
Pharmaceutical
- Silicon oil (Heat transfer fluid)
Pulp and Paper
- Chlorine
- Sulfuric Acid
Semiconductor Manufacturing
- Hydrofluoric acid
- Sulfuric acid
Steel Finishing, Pickling, Etching and Plating
- Hydrochloric acid
Water and Wastewater Treatment
- Sodium hypochlorite
- Sodium hydroxide
- Sulfuric acid
- Ferric Chloride
