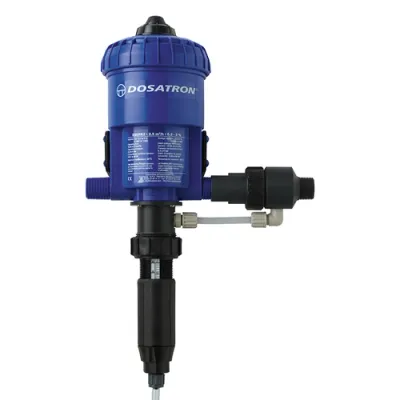

Dosatron - Model D25RE2 -Generic Dosing Pump
The standard dosing range D25 meets dosing needs from 10 l/h to 2.5 m3. Proportional dosing and without electricity. Proportionality dependent on water flow. Significant homogeneity. Not recommended for poorly soluble oral powders.
Most popular related searches
- Injection range 0,2 - 2 % [1:500 - 1:50]
- Water flow range 10 l/h - 2,5 m3/h
- Operating water pressure 0,3 - 6 bar
- Concentrated additive injection 0,3 l/h - 200 l/h
- Stroke volume ~ 0,45 l
- Connections NPT-BSP 3/4`` M Ø 20x27mm
- Seals for acidic additives
- Seals for alkaline additives
- PVDF housing for highly concentrated acids and other aggressive concentrates
- Seals for highly concentrated acids (>15%)
- External Injection
