Genius - Model XE SMZ -Nitrogen Gas Generator
Combining advanced technology with refined and robust engineering and built upon the best-in-class Genius XE nitrogen generator series, Genius XE SMZ provides a premium standalone nitrogen solution designed to meet and exceed the requirements of the latest high performance Shimadzu LC-MS instruments where performance and reliability are paramount. With dual outlets (1 x nitrogen, 1 x air), Genius XE SMZ has been precision engineered to provide LC-MS grade nitrogen on-demand from a small and quiet gas generator. Featuring Multi-Stage Purification™ and next-generation integrated compressors with Electronic Compressor Optimization™ (ECO) technology, Genius XE SMZ can comfortably support the latest Shimadzu LC-MS instruments including the LCMS-8060NX.
Application Types
LC-MS
Part number:
3303886
Status
Available i
Integrated compressor
Yes
- Designed and engineered to meet the demands of the latest Shimadzu LC-MS instruments
- Multi-Stage Purification™ to efficiently remove moisture and contaminants, providing a consistent quality of gas
- Low impact on lab environment with low noise and heat emissions
- Next-generation high performance premium compressors, engineered exclusively for Genius XE
- Touch-screen full color user interface for ease of use and operation
- ECO (Electronic Compressor Optimisation™) technology for low energy consumption and compressor durability
- Fixed annual maintenance schedule
- 2 year comprehensive manufacturer’s warranty*
*Year 2 of warranty subject to generator being serviced at end of year 1 by a Peak-approved agent in accordance with fixed annual maintenance schedule. For full terms and conditions visit www.peakscientific.com/warranty-statement.
Gas Type: Nitrogen
Max Gas Flow: 27L/min
Max Output Pressure: 100psi/6.9bar
Gas Type: Air
Max Gas Flow: 29L/min
Max Output Pressure: 99psi/6.8bar
Gas Outlets Fitting: 2 x ¼” BSPP
Start Up Time: 30 min
Power Consumption: 1.64 kVA
Voltage: 220 - 240v ±10%
Frequency: 50/60 Hz
Current: 9 Amps
Heat output: <5545 BTU
Max Operating Temp: 34°C / 93.2°F
Particles: <0.01µm
Phthalates: None
Suspended Liquids: None
Noise Level: 57dB(A) @ 1m
Accreditations: CE, FCC

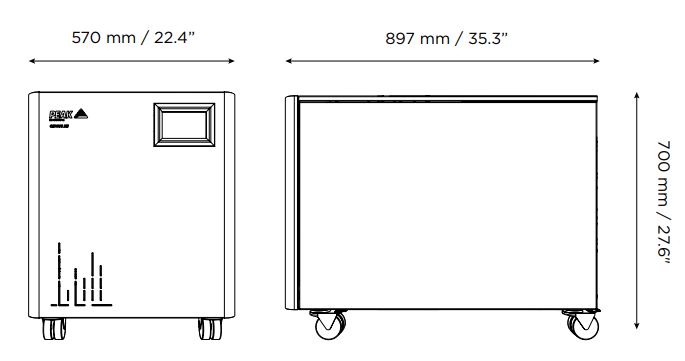

Size (HxWxD) mm: 700 x 570 x 897 mm
Size (HxWxD) Inches: 27.6 x 22.4 x 35.3 inches
Generator Weight: 155kg / 341lbs
