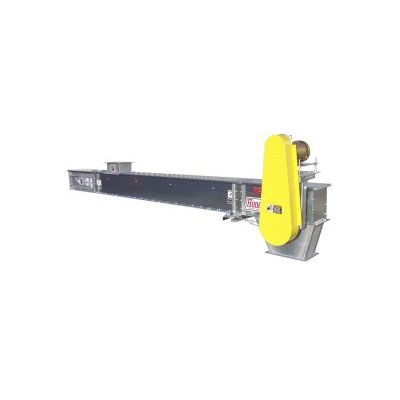

Gentl-Flow - Model HD -Horizontal Drag Conveyors
The Honeyville Gentl-Flow Drag Conveyor is manufactured with all galvanized steel for long life and minimum maintenance for the end user.
Most popular related searches
- Head and Boot: Sprockets with taper lock bushings.
- Drive Unit: Gear drive unit with overhead motor mount.
- Take -Up Assembly: Screw type take-up on intake end, with mounted bearings.
- Flighting: UHMW flights mounted on a heavy duty steel chain (81XH, 81XHH, or WR124), all manufactured in 10` sections.
- Optional: Bolt-on AR Medium steel bottom along with side liners.

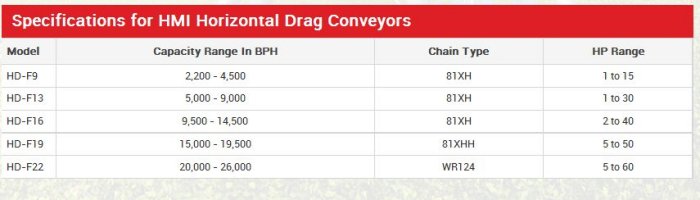

- See chart and drawing below for specifications on the five models available.
