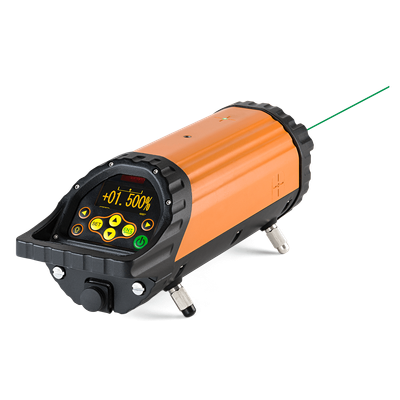

Geo-Fennel - Model FKL 55-GREEN - Pipe Laser System
FromGeo-Fennel GmbH
Rugged, waterproof, powerful, easy-to-use and comprehensive range of standard accessories. To the human eye a green laser dot is more visible than a red laser dot. Green laser technology of the next generation: Temperature range was increased to -20 °C.
Most popular related searches
Our new generation of pipe lasers incorporate the latest technology for improved site performance.
- Advanced mechanical engineering technology, temperature stability and grade technology
- Extremely good visibility of OLED-Display with large figures
- Long-range IR remote control with 100 m working range
- Laser spot direction setting: Quick shifting by continued pressing respective button at both laser or remote control
- Robust aluminium housing
- Easy intuitive operation
- Fully automatic self-levelling
- Automatic beam centering
- Laser start point indication
- Clear easy-to-read OLED-Display
- IR remote control with long working range
- Integrated rechargeable batteries
- Working range: up to 120 m
- Accuracy horizontal: ± 5,0 mm / 100 m
- Self-levelling range: ± 5°
- Grade range: -20% to +30%
- Left / right tracking: ± 4°
- Laser diode: red
- Laser class: 2
- Beam diameter: 10 mm
- Minimum display reading: 0,000 %
- Working range remote control: 50 m (back), 100 m (front)
- Dust / water protection: IP 68
- Operating time: 24 h
- Power supply: 4 x D 8000 mAh NiMH (optionally 4 x D alkaline)
- Temperature range: -20°C to +50°C
- Weight (laser only): 6 kg
- Extended size: Ø 132 mm, L = 380 mm
